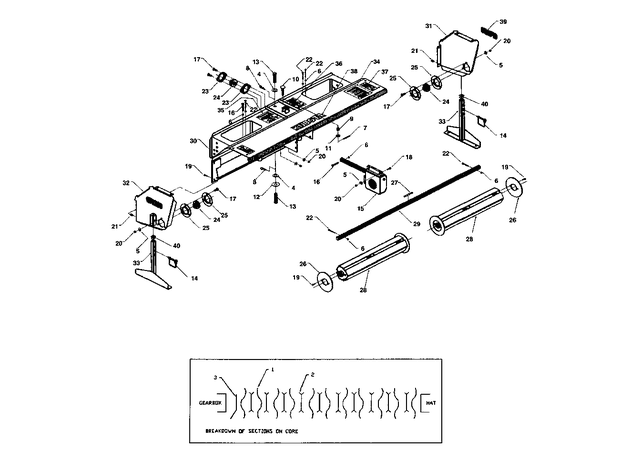

Kubota GF1800 I00200 SWEEPER (GF3250)

001

70090-33520

SECTION,18 4.4 POLY *

$19.10

002

70090-33522

SPACER

$2.33

003

70090-33523

SECTION ***

$17.16

004

70090-33526

WASHER, FLAT

$1.18

005

75599-33012

WASHER,LOCK 5/16 PTD *

$0.23

006

75599-31911

NUT,1/4-20 NC NYLOCK PTD *

$2.24

007

75599-52445

PIN. ROLL

$0.17

008

70090-33527

CLIP,HAIRPIN 14 GAUGE x 1 3/4

$1.32

009

70090-33528

SPRING

$2.56

010

70090-33529

PIN, HITCH PIVOT

$8.37

011

70090-33530

WASHER, SPECIAL .625 x 1

$0.07

012

75599-32018

WASHER, FLAT 3/4" SAE PTD PLAIN ***

$2.89

013

75599-51840

PIN CLEVIS PLTD 3/4 x 2

$9.51

014

70090-33531

PIN, LEG LOCK

$6.72

015

70090-33563

LUBE, G-BOX

$20.30

015

70090-33533

GEARBOX

$2,072.62

016

70090-33534

BOLT,SHEAR SPECIAL (SWEEPER)

$12.77

017

70090-33535

BOLT METRIC CARRIAGE

$1.54

018

01053-50825

BOLT M8x1.25x25 mm ***

$0.94

019

70090-33536

BOLT, WHIZ LOCK

$2.14

020

02056-50080

NUT, HEX M8-1.25, 6T ***

$2.00

021

70090-33537

NUT, INSERT

$2.92

022

70090-33562

BOLT (Special Grade 8)

$1.39

023

70090-33542

FLANGE, BRG 2-HOLE

$3.91

024

70090-33543

BEARING W/COLLAR

$32.47

025

70090-33544

FLANGE, BRG 3-HOLE

$2.63

026

70090-33546

PLATE, CORE (HAT)

$49.52

027

70090-33547

KEY

$1.59

028

70090-33548

WELDMENT, CORE (SWEEPER)

$492.93

029

70090-33549

SHAFT

$30.28

030

70090-33551

HOOD, W/DECALS

$750.60

031

70090-33552

SHIELD LT SIDE W/DEC

$245.24

032

70090-33553

SHEILD RT SIDE W/DEC

$163.71

033

70090-33557

STAND, PARKING ***

$169.22

034

70090-30611

DECAL

$25.58

035

70090-30609

DECAL

$17.93

036

70090-30614

DECAL

$2.15

037

70090-33558

LABEL, WARNING

$14.47

038

70090-30613

LABEL, KUBOTA ***

$30.94

039

70090-33559

LABEL, GF3250

$10.83

040

70090-33564

CAP, STAND

$0.70
