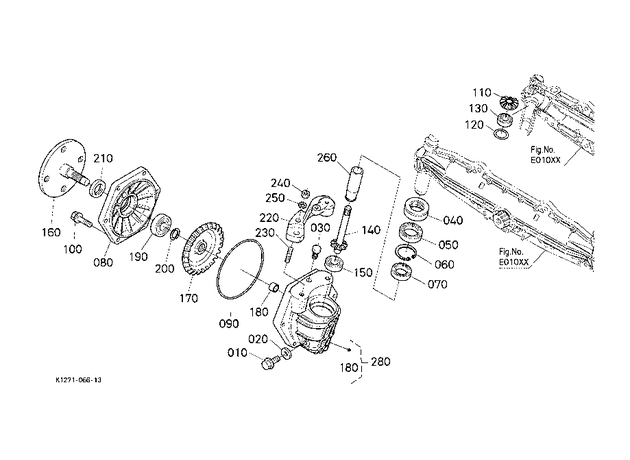

Kubota GR2000G FRONT AXLE E50000 MAIN FRAME STEERING SUPPORT

#
Part #
Item
Price
Qty
Add
010
01774-51010
BOLT M10x1.25x10 mm ***
$2.54
010
K1261-95033
KIT FRAME

product not available CALL FOR AVAILABILITY

$2,056.31
020
04717-01000
WASHER, SEAL W/RUBBER
$1.94
020
K1253-21030
BRACKET, AXLE F
$161.93
030
37410-38530
CAP
$5.66
030
01774-51025
BOLT M10x1.25x25 mm ***
$3.03
040
K1253-16370
SEAL, OIL
$55.67
040
K1122-15152
NIPPLE,GREASE M6x1.0
$0.94
050
08101-06907
BEARING BALL RADIAL35/55
$17.31
050
01774-51002
BOLT M10x1.25x110 mm ***
$5.21
060
04611-00470
CIR-CLIP, INTERNAL
$2.52
060
02574-50100
NUT, M18 SELF-LOCKING
$4.16
065
K1253-21042
COLLAR

product not available CALL FOR AVAILABILITY

$5.11
066
K1253-21140
SHIM

product not available CALL FOR AVAILABILITY

$0.99
070
08101-06906
BEARING, BALL RADIAL 30/70
$13.60
070
K1253-21117
SUPPORT, STEERING

product not available CALL FOR AVAILABILITY

$294.73
080
K1253-15480
COVER, GEAR CASE

product not available CALL FOR AVAILABILITY

$100.15
090
04811-11350
O-RING
$7.97
090
K1253-21059
BEAM(UPPER)

product not available CALL FOR AVAILABILITY

$160.11
100
01754-50830
BOLT M8x1.25x30 mm ***
$5.03
110
K1253-16280
GEAR, BEVEL F

product not available CALL FOR AVAILABILITY

$258.37
110
K1271-21064
COVER (REAR)

product not available CALL FOR AVAILABILITY

$75.35
120
K1253-16610
SHIM

product not available CALL FOR AVAILABILITY

$3.66
120
K1253-16650
SHIM

product not available CALL FOR AVAILABILITY

$3.34
120
K1253-16640
SHIM

product not available CALL FOR AVAILABILITY

$3.34
120
K1253-16630
SHIM

product not available CALL FOR AVAILABILITY

$3.34
120
K1253-16620
SHIM

product not available CALL FOR AVAILABILITY

$3.66
120
01774-71020
BOLT M10x1.25x20 mm
$1.70
130
08101-06202
BEARING,BALL RADIAL 25/32
$7.93
130
K1271-21072
PLATE, HITCH 117.5mm (approx 4.5")

product not available CALL FOR AVAILABILITY

$5.60
140
K1253-16310
SHAFT, BEVEL GEAR 9F

product not available CALL FOR AVAILABILITY

$86.89
140
01754-50825
BOLT M8x1.25x25 mm ***
$4.38
150
08101-06302
BEARING, BALL ***
$10.39
150
K2110-65170
LABEL SET, CAUTION (ENGLISH)

product not available CALL FOR AVAILABILITY

$68.56
160
K1253-16410
SHAFT, FRONT AXLE

product not available CALL FOR AVAILABILITY

$113.24
160
K1272-65170
LABEL SET, CAUTION (ENGLISH) *

product not available CALL FOR AVAILABILITY

$47.85
170
K1253-16320
GEAR, BEVEL

product not available CALL FOR AVAILABILITY

$258.37
180
K1253-16430
BUSHING (1512)
$14.04
180
08511-01512
BUSHING
$5.67
180
K2561-55180
TRIM, FRAME

product not available CALL FOR AVAILABILITY

$1.28
180
K1253-55180
TRIM, FRAME

product not available CALL FOR AVAILABILITY

$1.51
190
08101-06204
BEARING,BALL RADIAL ***
$10.32
200
K1253-16420
COLLAR,
$10.65
210
45403-51280
SEAL, OIL
$12.26
220
K1261-15540
SUPPORT, KINGPIN RH

product not available CALL FOR AVAILABILITY

$74.90
230
01555-51025
STUD ***
$2.92
240
02118-50100
NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***
$0.69
250
04512-70100
WASHER,SPRING
$0.52
260
K1253-16360
PIPE, KINGPIN

product not available CALL FOR AVAILABILITY

$26.69
280
K1253-15400
ASSY CASE, GEAR FRONT

product not available CALL FOR AVAILABILITY

$348.36
