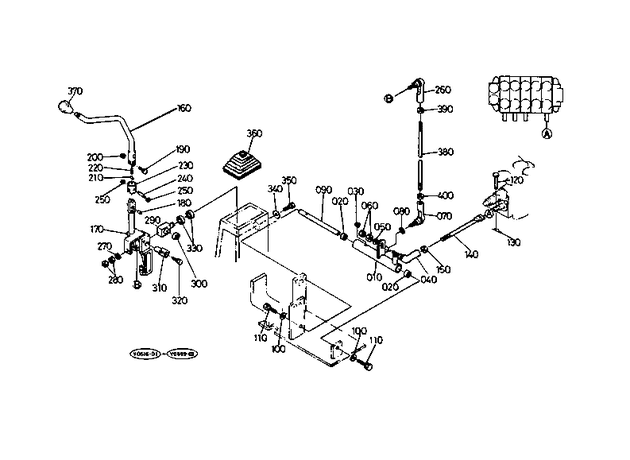

Kubota KH-101 HYDRAULIC SYSTEM S05400 CONTROL LEVER (TRAVEL LH-1) [EXCEPT H.R.C.]

#
Part #
Item
Price
Qty
Add
010
68548-65222
LEVER 1
$107.32
020
68741-65410
BRG NDL ROLLER16/22
$22.72
030
68741-65430
CAP
$0.72
040
68221-34330
END, RH ROD
$30.52
050
04512-70100
WASHER,SPRING
$0.52
060
02118-70100
NUT
$0.92
070
68221-34310
END, LH ROD
$31.27
090
68748-65230
FULCRUM, CONTROL ***
$24.96
110
01176-71025
BOLT
$0.98
120
68021-32790
PIN
$8.66
130
05525-70500
PIN,SNAP *
$1.27
140
68748-65210
CONTROL,ROD
$25.62
160
68548-65570
LEVER, CONTROL LH 2
$91.22
160
68548-65550
LEVER, CONTROL LH 2
$141.56
170
68548-65540
LEVER, CONTROL LH 1
$237.53
180
08511-00810
BUSHING

product not available CALL FOR AVAILABILITY

$3.34
190
68641-65330
BOLT ***
$6.80
200
02112-50080
NUT ***
$0.52
210
68641-65490
PIN
$3.09
220
68641-65484
SPRING ***
$10.67
230
68641-65463
COLLAR
$7.67
240
68641-65340
PIN, LOCK ***
$6.29
250
04613-50050
CIR-CLIP, EXTERNAL *
$4.16
290
68748-65522
PIN, FULCRUM
$143.35
300
68748-65550
BRG NDL ROLLER16/24
$20.54
310
68748-65540
PIN, FULCRUM ***
$18.33
320
01202-50612
BOLT M6x1.0x12 mm ***
$0.94
330
08141-06002
BEARING, BALL (RADIAL) 15/32
$9.29
340
04015-70080
WASHER, PLAIN
$0.52
350
01123-70816
BOLT M8x1.25x16 mm
$1.04
360
68748-65590
RUBBER, BELLOWS ***
$190.50
370
68773-65270
RIP
$64.41
380
68748-65240
CONTROL ROD
$65.36
400
68011-32680
NUT, LOCK
$1.12
