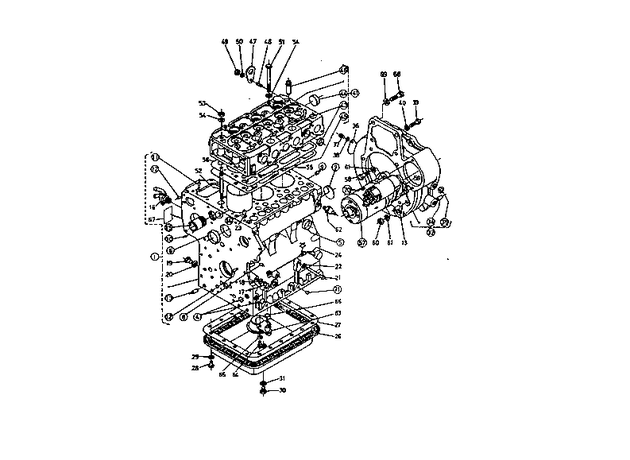

Kubota L225 ENGINE 010000 CRANKCASE

#
Part #
Item
Price
Qty
Add
001
15321-01010
CRANKCASE, COMP (57)

product not available CALL FOR AVAILABILITY

$2,745.54
003
15221-02310
LINER, CYLINDER
$139.62
004
06311-75015
PLUG, EXPANSION
$0.46
005
15221-03380
PLUG, SEALING
$6.20
006
15221-03390
CAP, SEALING
$7.58
007
06311-75045
PLUG, EXPANSION *
$0.96
008
15221-33630
PIN PLUG (SB 79-7)
$8.83
009
15221-33640
PLUG, PIN

product not available CALL FOR AVAILABILITY

$5.49
010
05012-00408
PIN, STRAIGHT
$0.40
011
05012-00609
PIN, STRAIGHT
$0.69
012
05012-00612
PIN, STRAIGHT
$0.69
013
05012-01018
PIN, STRAIGHT
$1.30
014
15221-33650
PIN, PIPE
$3.95
015
15221-72840
PIPE WATER 3
$25.25
016
15575-73100
COCK, DRAIN
$20.09
017
15221-33610
PLUG *
$4.15
018
15021-33660
GASKET, COPPER *
$0.85
019
15221-33750
PLUG *
$7.36
020
15109-33660
GASKET, COPPER
$0.94
021
15221-04550
BOLT, KNOCK ***

product not available CALL FOR AVAILABILITY

$9.59
023
15221-33700
O-RING ***
$3.95
024
H1520-36410
GAUGE,OIL ***
$64.05
025
04816-00050
O-RING
$1.30
026
15321-01610
COVER, OIL

product not available CALL FOR AVAILABILITY

$44.44
027
15322-01620
GASKET OIL COVER ***
$64.39
028
01053-50816
BOLT M8x1.25x16 mm ***
$0.61
029
04512-50080
WASHER, SPRING ***
$0.75
032
15341-04600
HOUSING, FLYWHEEL ***

product not available CALL FOR AVAILABILITY

$704.70
035
31220-14290
PLUG
$1.39
036
31220-14170
COVER
$7.56
037
01053-50812
BOLT

product not available CALL FOR AVAILABILITY

$0.99
039
01073-51030
BOLT M10x1.25x30 mm ***
$2.02
040
04512-50100
WASHER,M10 SPRING LOCK ***
$0.57
041
15321-03040
COMP.CYLINDER HEAD ***
$1,685.92
043
15221-03370
CAP, SEALING

product not available CALL FOR AVAILABILITY

$3.80
044
15221-03490
CAP, SEALING (ENGINE)
$6.99
045
15131-01380
PIN PLUG
$16.18
046
1J829-13580
GUIDE,VALVE(INLET)

product not available CALL FOR AVAILABILITY

$11.36
047
15221-01750
HOOK, ENGINE
$5.28
048
01513-50816
STUD ***
$0.92
049
02056-50080
NUT, HEX M8-1.25, 6T ***
$2.00
051
19202-03450
BOLT, CYLINDER HEAD
$18.98
052
19202-03410
STUD, CYLINDER HEAD

product not available CALL FOR AVAILABILITY

$27.69
053
15221-03510
NUT, CYLINDER HEAD
$51.60
054
15221-03540
WASHER
$2.00
055
15354-03310
GASKET,CYLINDER HEAD
$110.48
056
15321-03320
SHIM, HEAD GASKET
$19.48
057
17311-63010
STARTER (+ $40 CORE) *
$419.18
058
01173-51030
BOLT M10x1.25x30 mm ***
$1.52
059
01517-51025
STUD,BOLT ***
$1.72
060
02176-50100
NUT,HEX M10-1.25mm 6T ***
$0.69
062
15221-39016
SWITCH, OIL
$38.53
063
15221-32110
OIL FILTER ***

product not available CALL FOR AVAILABILITY

$34.19
066
04817-00140
O-RING ***
$2.15
067
15103-94590
LABEL, DRAIN
$2.12
068
01073-51240
BOLT M12x1.25x40 mm ***
$2.18
069
04512-50120
WASHER, SPRING LOCK ***
$2.21
070
15321-87760
MARK FORM ***

product not available CALL FOR AVAILABILITY

$6.17
071
34150-27580
PLUG
$1.39
