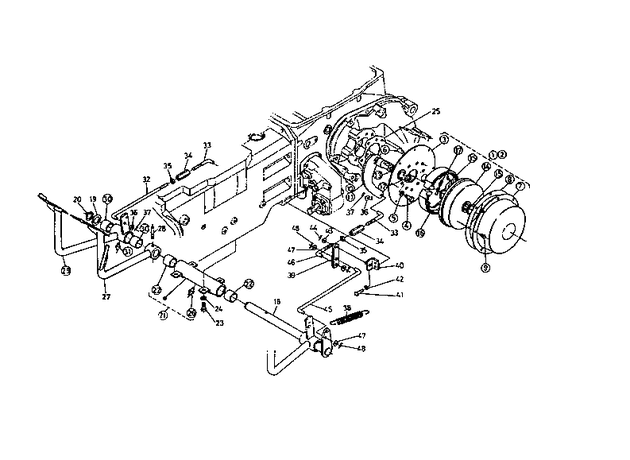

Kubota L225DT BRAKE 470000 BRAKE

#
Part #
Item
Price
Qty
Add
001
34150-28100
BRAKE, RH PAD
$257.99
002
34160-28300
ASSY BRAKE LH

product not available CALL FOR AVAILABILITY

$0.00
003
34150-28150
PLATE, ANCHOR***
$108.89
004
01173-51022
BOLT

product not available CALL FOR AVAILABILITY

$0.99
005
04512-50100
WASHER,M10 SPRING LOCK ***
$0.57
006
05012-01016
PIN, STRAIGHT

product not available CALL FOR AVAILABILITY

$0.00
007
34150-28210
COVER, BRAKE ***

product not available CALL FOR AVAILABILITY

$35.79
008
34150-28222
PACKING

product not available CALL FOR AVAILABILITY

$15.85
009
01202-50612
BOLT M6x1.0x12 mm ***
$0.94
010
34160-44415
LEVER, LH BRAKE CAM ***

product not available CALL FOR AVAILABILITY

$58.49
011
34150-28270
LEVER BRAKE CAM

product not available CALL FOR AVAILABILITY

$185.69
012
04612-00220
CIR-CLIP, EXTERNAL
$0.92
013
04816-00180
O-RING
$1.72
014
34150-28140
DRUM, BRAKE ***
$500.39
015
04612-00280
CIR-CLIP, EXTERNAL
$1.12
016
34150-28292
SHOE, BRAKE NA ASSY ***
$331.58
017
31220-28130
SPRING

product not available CALL FOR AVAILABILITY

$38.14
018
34150-28412
SHAFT, BRAKE PEDAL

product not available CALL FOR AVAILABILITY

$61.35
019
32150-28460
COLLAR (BRAKE)

product not available CALL FOR AVAILABILITY

$4.65
020
04612-00250
CIR-CLIP, EXTERNAL ***
$0.92
021
34150-28423
SUPPORT PEDAL

product not available CALL FOR AVAILABILITY

$108.08
022
34150-28430
BUSHING
$15.99
025
34150-28172
GASKET
$9.59
026
06613-10675
NIPPLE, GREASE
$3.04
027
34150-28613
PEDAL, LH BRAKE***

product not available CALL FOR AVAILABILITY

$80.24
028
05411-00840
PIN, SPRING
$1.26
029
34150-28624
PEDAL BRAKE RH

product not available CALL FOR AVAILABILITY

$0.00
030
32120-14750
BUSHING
$31.35
032
34159-28930
ROD, BRAKE 1

product not available CALL FOR AVAILABILITY

$26.18
033
34150-28940
ROD, BRAKE 2

product not available CALL FOR AVAILABILITY

$20.34
034
66591-42410
TURNBUCKLE
$12.02
035
02112-50080
NUT ***
$0.52
036
04012-50080
WASHER, PLAIN ***
$0.22
037
05511-50315
PIN, SPLIT ***
$0.31
038
34150-28950
SPRING

product not available CALL FOR AVAILABILITY

$10.16
039
34160-44420
LEVER BRAKE

product not available CALL FOR AVAILABILITY

$7.63
040
34160-44430
SUPPORT,LEVER ***

product not available CALL FOR AVAILABILITY

$66.56
041
01153-50818
BOLT M8x1.25x18 mm ***
$0.80
042
04512-50080
WASHER, SPRING ***
$0.75
045
34218-44440
BRAKE ROD

product not available CALL FOR AVAILABILITY

$13.60
046
34160-44450
ROD BRAKE REAR ***

product not available CALL FOR AVAILABILITY

$42.56
