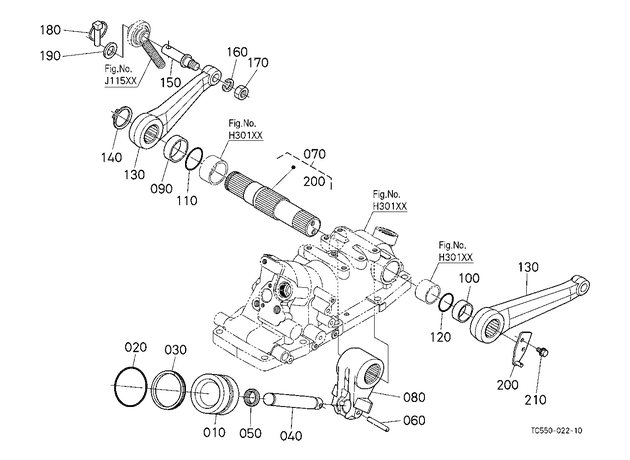

Kubota L2501F HYDRAULIC SYSTEM H32000 LIFT ARM

010

31321-37310

PISTON, HYDRAULIC

$100.14

020

04811-00650

O-RING

$4.65

030

34220-37380

RING, BACKUP

$34.29

040

31351-37320

ROD, HYD. PISTON 3PT

$44.46

050

31351-37330

GUIDE, O/P ROD

$3.48

060

05411-00656

PIN, SPRING

$1.94

070

TA150-37420

ASSY SHAFT

$237.03

080

31321-37445

ARM, HYDRAULIC

product not available CALL FOR AVAILABILITY

$168.87

090

34150-37480

COLLAR (LIFT ARM)

product not available CALL FOR AVAILABILITY

$8.30

100

34150-37490

COLLAR (LIFT ARM)

product not available CALL FOR AVAILABILITY

$7.59

110

04816-50450

O-RING

$3.08

120

04816-06400

O-RING

$5.75

130

TA040-34610

ARM, LIFT

product not available CALL FOR AVAILABILITY

$171.38

140

04612-00400

CIR-CLIP, EXTERNAL 40mm

$1.94

150

30442-37690

PIN, LIFT LEVER

product not available CALL FOR AVAILABILITY

$19.88

160

04512-70160

WASHER,SPRING

$0.90

170

02174-50160

NUT,HEX M16x2 4T JIS ***

$1.94

180

34150-37640

PIN, SET

$7.44

190

04011-50180

WASHER, FLAT 18MM (19MM IDX34MM OD) ***

$0.95

200

TA150-37720

LINK 2, CONTROL

product not available CALL FOR AVAILABILITY

$12.21

210

01754-50812

BOLT M8x1.25x12 mm ***

$3.37
