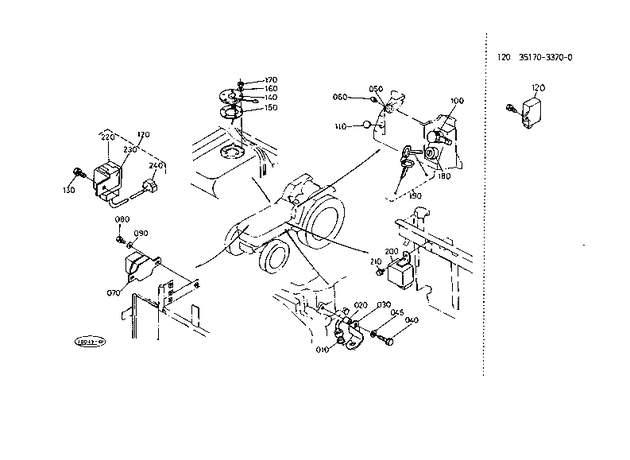

Kubota L2550DT ELECTRICAL SYSTEM T04101 SWITCH AND REGULATOR EXCEPT [FR][GR][PO]

#
Part #
Item
Price
Qty
Add
010
37150-32240
SWITCH, SAFETY
$44.53
020
31351-32272
SPACER,BRACKET ***

product not available CALL FOR AVAILABILITY

$3.03
030
31351-32250
BRACKET, SWITCH

product not available CALL FOR AVAILABILITY

$6.42
040
01133-51040
BOLT M10x1.25x40 mm ***
$2.47
045
04011-50100
WASHER, PLAIN ***
$0.31
050
17331-65950
INDICATOR, GLOW PLUG ***

product not available CALL FOR AVAILABILITY

$41.75
060
01754-50816
BOLT M8x1.25x16 mm ***
$3.72
070
33251-74010
REGULATOR ASSY.,
$146.41
080
01023-50612
BOLT M6x1.0x12 mm ***
$0.69
090
04013-50060
WASHER, PLAIN ***
$0.52
100
31351-32100
SWITCH
$60.08
110
30430-82670
PLUG, BLIND
$5.67
120
35170-33700
FLASHER UNIT
$96.90
130
01202-50616
BOLT M6x1.0x16 mm ***
$0.98
140
31331-31202
UNIT, FUEL

product not available CALL FOR AVAILABILITY

$164.88
150
36330-75310
GASKET
$4.98
160
04013-70050
WASHER,PLAIN *
$0.52
170
02054-50050
NUT ***
$0.26
180
32430-31820
SWITCH, MAIN
$86.92
190
35260-31852
ASSY KEY, MAIN SWITCH *
$11.57
200
1J321-60242
TIMER
$222.73
210
01754-50610
BOLT M6x1.0x10 mm ***
$1.27
220
32430-33700
HAZARD UNIT ASSY
$96.90
230
32430-94270
BRACKET, HAZARD UNIT

product not available CALL FOR AVAILABILITY

$12.36
240
32430-94280
HARNESS, HAZARD UNIT

product not available CALL FOR AVAILABILITY

$142.53
