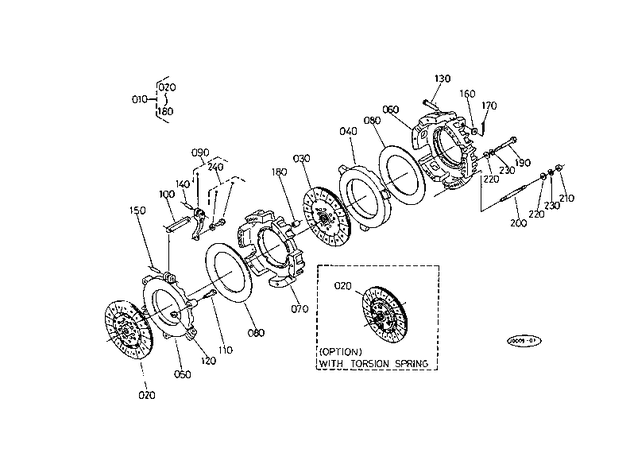

Kubota L3250DT CLUTCH T04601 CLUTCH (DC)

#
Part #
Item
Price
Qty
Add
010
32440-14200
CLUTCH, DUAL ASSY

product not available CALL FOR AVAILABILITY

$1,427.12
020
38150-14400
COMP, DISK CLUTCH
$268.90
030
32425-14450
DISK, CLUTCH PTO NA
$225.31
040
38260-14430
PLATE, PRESSURE ASSY (DRIVE CLUTCH)
$190.53
050
32430-14440
PLATE, PRESSURE
$253.17
060
32430-14410
COVER, CLUTCH
$470.65
070
32430-14420
COVER, CLUTCH
$357.90
080
32430-14520
SPRING, DIAPHRAGM
$135.31
090
35290-99030
KIT LEVER, RELEASE (CLUTCH)

product not available CALL FOR AVAILABILITY

$436.09
100
38260-14530
COMP ROD, RELEASE
$57.57
110
35290-14580
BOLT

product not available CALL FOR AVAILABILITY

$10.40
120
02176-50100
NUT,HEX M10-1.25mm 6T ***
$0.69
130
38260-14560
PIN, JOINT

product not available CALL FOR AVAILABILITY

$4.80
140
34370-14570
PIN, STRAIGHT

product not available CALL FOR AVAILABILITY

$4.78
150
38260-14580
STRAIGHT,PIN

product not available CALL FOR AVAILABILITY

$6.61
160
04012-50080
WASHER, PLAIN ***
$0.22
170
38260-14590
PIN, SPLIT

product not available CALL FOR AVAILABILITY

$0.99
180
34370-14590
PIPE, KNOCK (CLUTCH)

product not available CALL FOR AVAILABILITY

$8.94
190
01153-50870
BOLT M8x1.25x70 mm ***
$2.87
200
01513-50870
STUD
$1.65
210
02156-50080
NUT, HEX M8 -1.25 ***
$0.52
220
04013-50080
WASHER, M8 PLAIN ***
$0.31
230
04512-50080
WASHER, SPRING ***
$0.75
240
35290-14600
KIT, NUT & BOLT

product not available CALL FOR AVAILABILITY

$56.59
