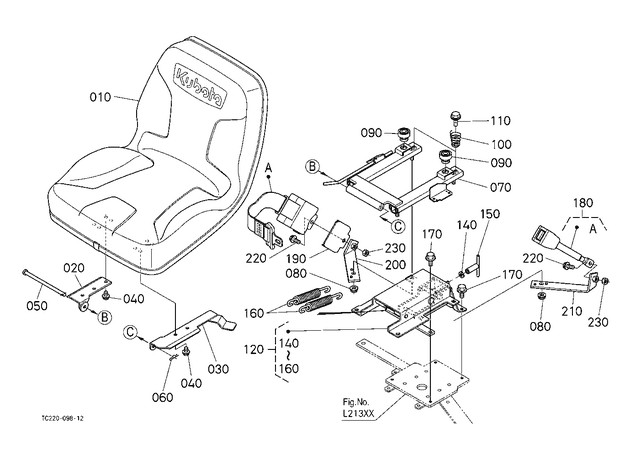

HOOD BONNET L22000 SEAT

#
Part #
Item
Price
Qty
Add
010
TC250-88720
SEAT
$575.86
020
TC050-18450
BRACKET, RH SEAT

product not available CALL FOR AVAILABILITY

$27.39
030
TC220-18462
BRACKET, SEAT LH
$21.41
030
TC220-18461
BRACKET,SEAT LH S/N <=10378

product not available CALL FOR AVAILABILITY

$0.00
040
01754-50816
BOLT M8x1.25x16 mm ***
$2.86
050
TC050-11850
PIN, SEAT
$8.65
060
05516-51000
PIN, SNAP ***
$1.49
070
3A272-18430
ASSY ADJUSTER

product not available CALL FOR AVAILABILITY

$227.91
080
02783-50100
NUT, FLANGE
$4.13
090
32160-18440
CUSHION, RUBBER (SEAT)
$9.09
100
3A272-75270
SPRING
$8.35
120
TC223-11800
ASSY SUSPENSION, SEAT
$246.79
140
04011-50100
WASHER, PLAIN ***
$0.24
150
TC350-11860
NUT, ADJUSTING
$10.13
160
TC350-11870
SPRING, SEAT
$23.22
180
K3181-56882
KIT BELT,SEAT * ***
$122.54
190
TC050-18472
COVER,SEAT BELT

product not available CALL FOR AVAILABILITY

$15.85
200
TA040-18482
BRACKET, RH SEAT BELT

product not available CALL FOR AVAILABILITY

$24.61
210
TC030-18492
BRACKET, SEAT BELT LH

product not available CALL FOR AVAILABILITY

$15.71
210
TC030-18491
BRACKET,SEAT BELT LH S/N <=10353

product not available CALL FOR AVAILABILITY

$0.00
220
01774-51025
BOLT M10x1.25x25 mm ***
$2.33
230
02116-50100
NUT, HEX M10 ***
$0.24
