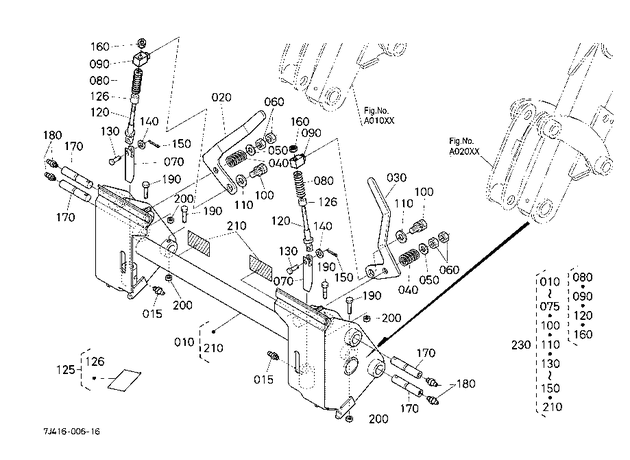

Kubota M105S-CAB FRONT ATTACHMENTS A03001 QUICK HITCH ## NOTE ORDER BY REF.No.010,020,030 AND 070 NEW PARTS SET

#
Part #
Item
Price
Qty
Add
010
7J416-90502
HITCH (LABEL LA1301S)
$1,585.55
015
75599-81520
FITTING, GREASE 1/4-28T.T*54 * ***
$0.85
015
75599-81521
FITTING, GREASE 1/4-28T.T*68 *
$1.20
020
7J419-36320
HANDLE, LATCH RH
$21.54
020
7J266-36320
HANDLE LATCH RH

product not available CALL FOR AVAILABILITY

$42.76
030
7J419-36310
HANDLE, LATCH LH
$23.45
030
7J266-36310
HANDLE LATCH LH

product not available CALL FOR AVAILABILITY

$47.74
040
7J266-36350
SPRING, HANDLE * ***
$6.77
050
04015-50120
WASHER, PLAIN ***
$0.79
060
02176-50120
NUT, HEX M12x1.25 ***
$0.92
060
02076-50120
NUT M12
$0.92
070
7J419-36430
PIN, LATCH 1.25" dia 6.42" long * ***
$58.43
070
7J266-36430
PIN, LATCH 1.124" dia 6.29" long *
$59.83
075
7J275-36300
ASSY LINK * ***
$61.82
080
7J266-36340
SPRING, LATCH PIN * ***
$12.58
090
7J266-36360
STOPPER, LATCH SPRING * ***
$21.56
100
01133-51225
BOLT M12x1.25x25 mm ***
$1.87
120
7J266-36470
PIN, LINK LATCH * ***
$149.76
125
7J266-99200
KIT COLLAR, w/BUSHING
$28.46
126
7J266-36440
PIN, COLLAR

product not available CALL FOR AVAILABILITY

$3.63
130
05122-51040
PIN, JOINT ***
$2.90
140
04013-50100
WASHER, M10 PLAIN ***
$0.52
150
05511-50320
PIN, SPLIT ***
$0.31
160
02572-50120
NUT, SELF LOCKING ***
$5.37
170
75568-58740
PIN 5
$36.19
170
7J423-58712
PIN,3

product not available CALL FOR AVAILABILITY

$39.68
190
75599-04360
HX BT 3/8 24UNF 3 ***
$1.49
200
75599-31923
NUT,3/8-24 NYLOCK PTD
$0.51
210
7J802-36485
LABEL, DANGER QH *
$2.34
230
7J416-96103
ASSY HITCH, S-QUICK
$2,080.31
