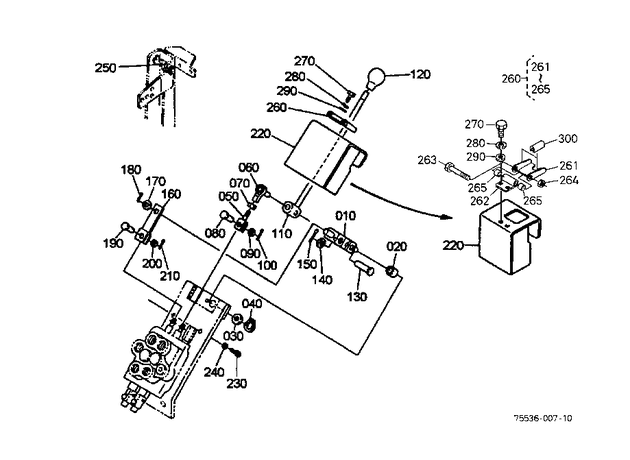

Kubota B1700D CONTROL LEVER B01300 CONTROL LEVER

#
Part #
Item
Price
Qty
Add
010
75532-62110
LEVER
$85.65
020
75540-62140
BUSHING CJS1012
$8.45
030
75545-62150
COLLAR, 5/8
$1.61
040
0Y462-50100
CIR CLIP, EXTERNAL
$0.69
050
75536-62162
ROD
$34.54
050
75532-62160
ROD 1 ***
$39.72
060
7K530-71180
JOINT, ROD END
$13.81
070
75599-31042
NUT,HEX 5/16-24 UNF ***
$0.44
070
0Y204-50050
NUT
$1.29
080
K2C51-62190
PIN

product not available CALL FOR AVAILABILITY

$11.48
080
75599-51115
PIN CLEVIS PLTD 1/4 x 3/4
$2.42
090
75599-32009
WASHER, 3/16 SAE
$0.13
090
75599-32011
WASHER, FLAT 1/4" HOLE STD PTD ***
$0.34
100
05525-70500
PIN,SNAP *
$1.27
100
75599-53131
PIN COTTER PLTD 1/16 x 1/2
$0.19
110
75532-62212
LEVER, CONTROL
$187.61
120
31355-82522
GRIP,LEVER
$14.21
130
75599-51540
PIN,1/2 x 2 CLEVIS PTD *
$6.12
140
75599-32015
WASHER,FLAT 1/2 ID SAE PTD PLAIN ***
$3.69
150
75599-53173
PIN COTTER GLDZ 1/8 X 1
$0.25
160
75536-62282
ROD
$39.27
160
75532-62280
ROD 2 ***
$45.03
170
75599-32012
WASHER,FLAT 5/16 (3/8"INT) PLAIN PTD *
$0.13
180
75599-52115
PIN, COTTER 3/32x3/4 PTD ZINC CLR *
$0.25
220
75536-62310
COVER
$168.24
220
75532-62310
COVER
$183.28
230
75599-01215
BOLT, HEX 5/16-18UNCX3/4 G5 * ***
$0.44
240
75599-33012
WASHER,LOCK 5/16 PTD *
$0.23
250
75540-62360
LABEL, CONTROL
$30.16
260
75548-62400
LIMITER, ASSY
$262.09
261
75540-62410
PLATE, LIMITER
$31.79
262
75548-62420
HINGE
$80.05
263
75599-01255
SCREW,HHCS .31NCx2.75 G5 ZC * ***
$1.35
264
75599-31912
NUT,5/16-18 NC HEX NYLOCK G5 PTD *
$0.38
265
75548-62440
CUSHION, RUBBER
$0.90
270
75599-01212
BOLT, HEX 5/16"NCx5/8" lg G5 PTD ***
$0.34
300
75540-62450
CUSHION 1, RUBBER ***
$0.26
