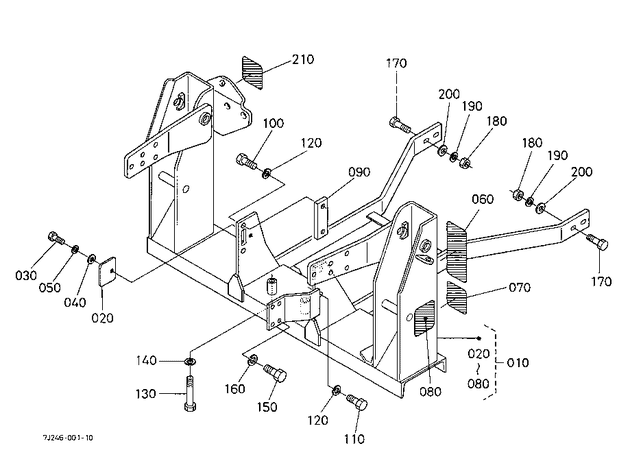

Kubota L3000F CHASSIS A00102 MAIN FRAME

#
Part #
Item
Price
Qty
Add
010
7J246-90110
SUBFRAME LABEL

product not available CALL FOR AVAILABILITY

$1,187.91
020
7J241-55272
COVER, PAINT ORANGE

product not available CALL FOR AVAILABILITY

$9.22
030
75599-02210
BOLT5/16-24UNF X 1/2
$0.59
030
75599-02212
HX BT 5/16 24UNF 5/8 ***
$0.53
040
75599-32012
WASHER,FLAT 5/16 (3/8"INT) PLAIN PTD *
$0.13
050
75599-33012
WASHER,LOCK 5/16 PTD *
$0.23
060
7J246-56412
LABEL,DANGER 1

product not available CALL FOR AVAILABILITY

$5.48
070
7J246-56420
LABEL, DANGER 2
$12.77
080
7J246-56442
LABEL, WARNING 1
$2.42
090
75541-55510
SPACER
$10.72
100
01073-51430
BOLT M14x1.5x30 mm ***
$1.94
100
01073-51445
BOLT M14x1.5x45 mm
$2.18
120
75599-33016
WASHER,SPRING 9/16 PTD *
$0.44
130
01073-51270
BOLT M12x1.25x70 mm ***
$2.69
140
04512-70120
WASHER,SPRING
$0.31
150
01073-51240
BOLT M12x1.25x40 mm ***
$2.18
170
75599-03535
BOLT, HEX
$1.41
180
75599-31015
NUT, HEX 1/2-13 NC FIN G5 PTD *
$0.78
190
75599-33015
WASHER,1/2"LOCK PTD Rect Coil Spring
$0.65
200
75599-32015
WASHER,FLAT 1/2 ID SAE PTD PLAIN ***
$3.69
210
75540-62360
LABEL, CONTROL
$30.16
