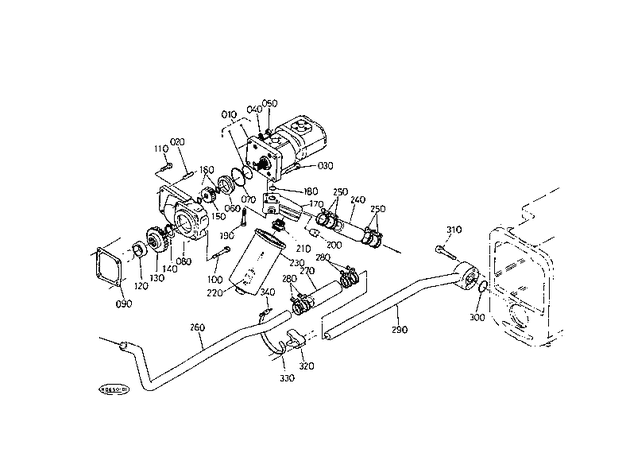

Kubota M4950-S HYDRAULIC SYSTEM T15201 HYDRAULIC PUMP AND SUCTION PIPE

010

36230-82203

PUMP, HYDRAULIC ***

product not available CALL FOR AVAILABILITY

$1,828.78

020

01513-50830

STUD ***

$1.30

030

01123-50835

BOLT M8x1.25x35 mm ***

$1.35

040

04512-50080

WASHER, SPRING ***

$0.75

050

02114-50080

NUT, HEX M8-1.25 4T ***

$0.52

060

36200-82250

RING (SLEEVE)

$35.10

070

04811-10500

O RING

$3.58

080

32550-10610

HYD PUMP BASE

product not available CALL FOR AVAILABILITY

$357.43

090

35394-37860

GASKET

$4.34

100

01123-50850

BOLT M8x1.25x50 mm ***

$1.70

110

01123-50825

BOLT M8x1.25x25 mm *

$1.04

120

32550-10650

COLLAR (HYDRAULIC PUMP)

product not available CALL FOR AVAILABILITY

$11.04

130

36230-82270

GEAR, SPUR 27

$156.88

140

04612-00250

CIR-CLIP, EXTERNAL ***

$0.92

150

36230-82280

SPUR GEAR 16T ***

$79.56

160

04612-00170

CIR-CLIP, EXTERNAL

$0.69

170

36230-82650

FILTER BRACKET ***

product not available CALL FOR AVAILABILITY

$240.26

180

04817-00220

O-RING

$2.70

190

01053-50650

BOLT M6x1.0x50 mm ***

$1.27

200

36230-82660

PLUG

product not available CALL FOR AVAILABILITY

$8.99

210

36330-82670

JOINT ***

$10.11

220

35880-82640

FILTER, MAGNET

$34.46

230

36330-82630

FILTER, HYD COMP.

$41.30

240

36330-82730

PIPE

$14.59

250

36200-82720

CLAMP

$7.03

260

36230-82680

PIPE 1 ***

product not available CALL FOR AVAILABILITY

$19.18

290

36330-82690

PIPE 2 ***

$80.39

300

04811-00280

O RING***

$2.17

320

36330-82720

PIPE CUSHION

$7.36

330

33251-82760

BAND, PIPE

$11.12

340

33430-82760

PIN, HYD PIPE BAND

$7.44
