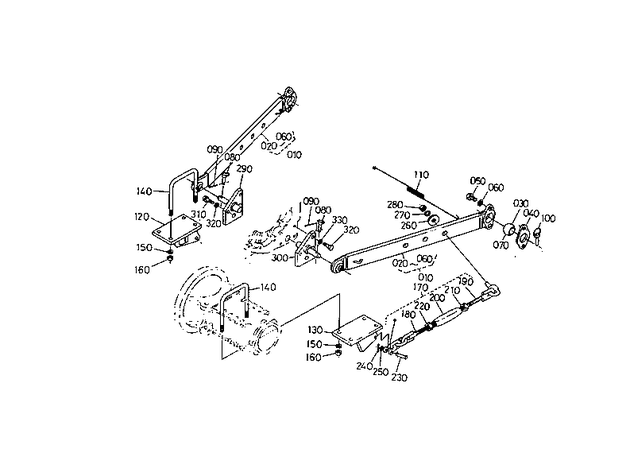

Kubota M4950DT HYDRAULIC SYSTEM T06900 3-POINT LINKAGE 1

#
Part #
Item
Price
Qty
Add
010
35820-92000
LOWER LINK ASSY. ***

product not available CALL FOR AVAILABILITY

$253.93
030
33400-91920
LOWER LINK ***
$53.98
040
33400-91860
JOINT ASSY
$110.29
050
33400-91880
BOLT ***
$16.93
060
04512-50100
WASHER,M10 SPRING LOCK ***
$0.57
070
3M740-91040
JOINT, LOWER LINK
$63.88
080
36330-91840
ASSY PIN, SET
$8.30
090
05511-50420
PIN, SPLIT
$0.31
100
70000-73593
PIN,LINCH 7/16" CAT 2 * ***
$1.72
110
36330-91830
SPRING, SET
$56.66
120
35535-91080
BRACKET, CHAIN RH ***

product not available CALL FOR AVAILABILITY

$103.72
130
36530-91092
BRACKET, CHAIN LH

product not available CALL FOR AVAILABILITY

$173.73
140
36330-91070
BOLT, U

product not available CALL FOR AVAILABILITY

$43.71
150
04512-70160
WASHER,SPRING
$0.90
160
02176-50160
NUT, HEX
$1.94
170
36330-91105
STABILIZER, ASSY ***

product not available CALL FOR AVAILABILITY

$245.26
180
36330-91110
STABILIZER, ASSY FRT

product not available CALL FOR AVAILABILITY

$128.21
190
36330-91160
STABILIZER, REAR

product not available CALL FOR AVAILABILITY

$111.22
200
36330-91190
TURNBUCKLE

product not available CALL FOR AVAILABILITY

$85.97
210
02054-50180
NUT
$1.65
220
35999-02530
NUT, LOCK

product not available CALL FOR AVAILABILITY

$8.52
230
36330-91180
SET, CHAIN PIN

product not available CALL FOR AVAILABILITY

$10.72
240
05511-50525
PIN, SPLIT

product not available CALL FOR AVAILABILITY

$0.99
250
04011-50140
WASHER, PLAIN-CREEP SPD KIT ***
$0.52
260
36330-91220
WASHER, STABILIZER

product not available CALL FOR AVAILABILITY

$14.60
270
04512-50180
WASHER, SPRING LOCK ***
$0.52
280
02174-50180
NUT ***
$2.15
290
36570-91883
PIN, LOWER RH LINK ***
$293.44
290
35820-91880
PIN, RH LOWER LINK ***

product not available CALL FOR AVAILABILITY

$175.44
300
36570-91893
PIN, LOWER LH LINK
$308.54
300
35820-91890
PIN,LOWER LINK LH ***

product not available CALL FOR AVAILABILITY

$134.78
310
01173-51440
BOLT M14x1.5x40 mm
$2.77
320
04512-50140
WASHER, SPRING ***
$0.31
