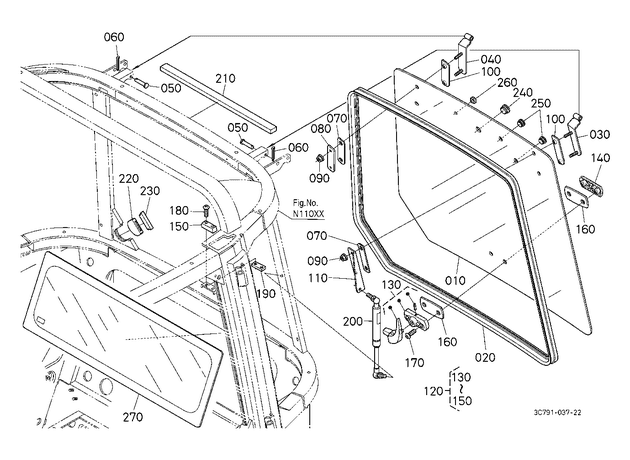

Kubota M5040FC-1 CAB N15001 REAR WINDOW ## NOTE ORDER BY REF.No.020, 030 and 040 NEW PARTS.

#
Part #
Item
Price
Qty
Add
010
3C591-70550
GLASS,HATCH BACK
$337.46
020
3C581-71045
STRIP,REAR WEATHER
$157.95
030
3C581-71022
HINGE (HATCH,LH)
$57.05
040
3C581-71033
HINGE (HATCH,RH)
$57.05
050
05122-50835
PIN, JOINT ***
$1.94
060
05525-50800
PIN, SNAP ***
$1.12
070
3C581-75620
GASKET (REAR)
$6.34
080
3C581-61840
STAY, RH ("WASHER")
$11.00
090
T0270-86220
NUT
$1.30
100
3C581-61780
GASKET
$17.46
110
3C581-61830
BRACKET, CYLINDER
$141.09
120
T3685-84500
COMP HANDLE

product not available CALL FOR AVAILABILITY

$58.05
120
T0270-84500
COMP. HANDLE
$130.18
130
T3685-84510
ASSY HANDLE REARLOCK
$40.36
130
T0180-83510
HANDLE
$113.51
140
T3685-84520
COVER, REARLOCK
$12.35
140
T0180-83520
COVER, HANDLE
$40.36
150
T3685-84530
BRACKET, REARLOCK
$15.53
150
T0270-71090
BRACKET

product not available CALL FOR AVAILABILITY

$8.52
160
T0270-61770
Packing
$2.70
170
T0180-83610
SCREW
$0.31
180
T0180-83560
SCREW
$0.31
190
T0270-71070
BRACKET
$8.88
200
3C581-53770
DAMPER (HATCH, REAR)
$115.17
210
3C581-71080
SHIELD (1)

product not available CALL FOR AVAILABILITY

$15.23
220
3C581-53750
PLUG
$21.00
230
3C581-53760
SUPPORT (PLUG, HATCH)
$8.15
240
41182-61150
PLUG, BLIND
$2.82
250
3A751-55790
PLUG(16)
$11.83
260
3C581-55760
PLUG
$4.34
270
3C591-71010
GLASS (REAR WINDOW)
$144.78
