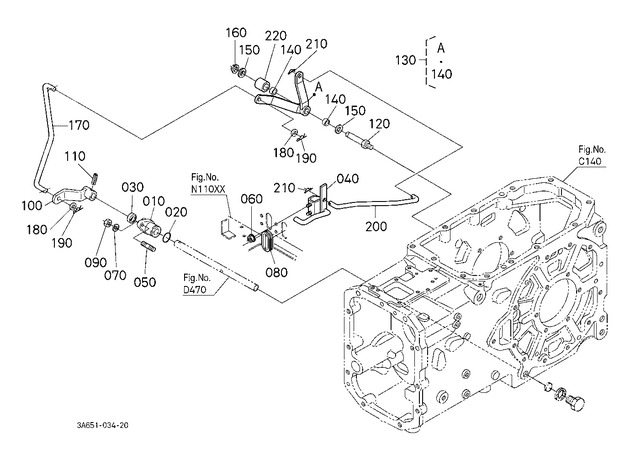

Kubota M5700-CAB REAR AXLE BRAKE F24000 REAR DIFFERENTIAL LOCK PEDAL

010

3A011-32910

SUPPORT, SHAFT (DIFF)

$78.57

020

04811-10290

O RING

$2.24

030

09500-16287

SEAL, OIL

$6.81

040

3A751-33010

COMP.PEDAL

product not available CALL FOR AVAILABILITY

$56.06

050

01517-71030

STUD *

$1.66

060

02751-70080

NUT, FLANGE

$3.97

070

04512-70100

WASHER,SPRING

$0.52

080

3A751-32980

COVER

product not available CALL FOR AVAILABILITY

$10.29

090

02176-50100

NUT,HEX M10-1.25mm 6T ***

$0.69

100

3A011-32930

LEVER

$49.12

110

05411-00625

PIN, SPRING

$1.12

120

3A011-33120

PIN

$16.48

130

3A651-32990

ASSY LEVER, DIFF. LOCK

product not available CALL FOR AVAILABILITY

$50.78

140

08511-01410

BUSHING (CREEP SPD KIT COMPONENT) ***

product not available CALL FOR AVAILABILITY

$3.34

150

04011-50140

WASHER, PLAIN-CREEP SPD KIT ***

$0.52

160

04612-00140

CIR-CLIP, EXTERNAL

$0.52

170

3A011-33060

ROD

$35.33

180

04013-70100

WASHER,M10 PLAIN/FLAT

$0.52

190

52300-34130

PIN, SNAP *

$3.56

200

3A651-33060

ROD,DIFF. LOCK

product not available CALL FOR AVAILABILITY

$18.16

220

3A151-33020

COLLAR

product not available CALL FOR AVAILABILITY

$7.05
