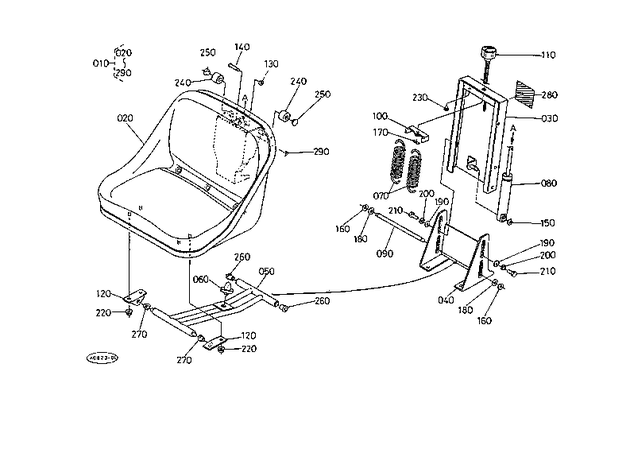

Kubota M6030DT HOOD(BONNET) AND ROPS T14000 SEAT [COMPONENT PARTS]

010

35420-85010

ASSY, SEAT ***

product not available CALL FOR AVAILABILITY

$488.03

020

35822-85160

SEAT CUSHION ***

$447.64

030

36530-85170

CASE, OUTER

product not available CALL FOR AVAILABILITY

$148.21

040

36530-85180

BRACKET, SEAT

product not available CALL FOR AVAILABILITY

$122.53

050

36530-85190

SWING ARM

product not available CALL FOR AVAILABILITY

$206.83

060

36530-85240

RUBBER STOP

product not available CALL FOR AVAILABILITY

$13.05

070

36530-85260

SPRING, COIL

product not available CALL FOR AVAILABILITY

$39.90

080

36530-85270

SHOCK ABSORBER ***

$141.52

090

36530-85280

SHAFT

$22.57

100

36530-85290

NUT, HANGER

product not available CALL FOR AVAILABILITY

$16.10

110

36530-85310

KNOB, ADJUSTING

product not available CALL FOR AVAILABILITY

$58.73

120

36530-85320

SUPPORT

$28.19

130

04613-50030

CIR-CLIP,EXTERNAL

$0.24

140

36530-85340

PIN ***

$5.40

150

04612-00100

CIR-CLIP, EXTERNAL

$0.40

160

04613-50100

CIR-CLIP, EXTERNAL

$0.38

170

05411-00414

PIN, SPRING

$0.53

180

36530-85380

WASHER, PLAIN

$2.66

190

36530-85390

WASHER,SPRING ***

$3.04

200

04512-50100

WASHER,M10 SPRING LOCK ***

$0.44

210

01073-51020

BOLT M10x1.25x20 mm ***

$1.31

220

02751-50080

NUT,HEX M8X1.25 FLANGE 4T

$3.05

230

36530-85440

RUBBER STOP ***

$5.49

240

36530-85470

ROLLER

$10.64

250

36530-85480

WASHER

$2.08

260

36530-85490

BUSHING

$10.29

270

36530-85510

BUSHING

$3.17

280

36530-85580

LABEL

$14.12

290

36530-85590

MARK

$3.23
