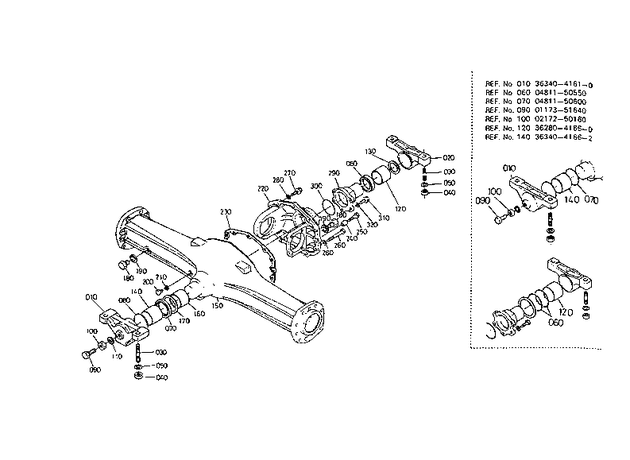

Kubota M6950DT FRONT DRIVE AXLE T08200 FRONT DIFF.CASE

#
Part #
Item
Price
Qty
Add
010
36340-41610
FRT.BRACKET

product not available CALL FOR AVAILABILITY

$299.07
010
35830-41610
FRONT BRACKET
$241.11
020
36340-41620
BRACKET,REAR ***

product not available CALL FOR AVAILABILITY

$152.00
030
01519-51848
STUD
$6.93
040
02076-50180
NUT ***
$2.52
050
04512-50180
WASHER, SPRING LOCK ***
$0.52
060
35999-05460
OIL SEAL ***

product not available CALL FOR AVAILABILITY

$10.81
060
04811-50550
O RING
$2.57
070
09230-65885
SEAL, OIL
$9.78
070
04811-50600
O RING *
$2.57
080
36280-41630
WASHER
$5.41
090
01175-51645
BOLT M16x1.5x45 mm
$2.54
090
01073-51640
BOLT M16x1.5x40 mm
$3.80
100
32580-44580
NUT

product not available CALL FOR AVAILABILITY

$13.15
100
02172-50160
NUT, 149400 ***
$1.94
110
38440-44750
WASHER, SEAL

product not available CALL FOR AVAILABILITY

$1.49
120
08511-05540
BUSHING
$17.32
130
36280-41670
WASHER, THRUST
$40.82
140
33750-41680
BUSHING

product not available CALL FOR AVAILABILITY

$30.33
140
08511-06040
BUSHING
$27.08
150
36970-42140
ASSY CASE, FRONT DIF

product not available CALL FOR AVAILABILITY

$3,037.05
160
36840-42160
RING, INNER
$80.16
170
36840-42180
WASHER

product not available CALL FOR AVAILABILITY

$34.13
180
06331-35020
PLUG ***
$4.34
190
04717-02000
WASHER, SEAL W/RUBBER
$2.90
200
06331-35010
PLUG ***
$2.65
210
04717-01000
WASHER, SEAL W/RUBBER
$1.94
220
36540-42210
PINION BEARING CASE

product not available CALL FOR AVAILABILITY

$1,682.07
230
36740-42172
GASKET

product not available CALL FOR AVAILABILITY

$19.08
240
36280-43170
PIN

product not available CALL FOR AVAILABILITY

$12.22
250
36340-43180
BOLT, UBS

product not available CALL FOR AVAILABILITY

$4.13
260
01176-51295
BOLT
$4.28
270
36740-42220
BOLT

product not available CALL FOR AVAILABILITY

$6.15
280
04512-50120
WASHER, SPRING LOCK ***
$2.21
290
36540-42250
PINION CASE CAP

product not available CALL FOR AVAILABILITY

$618.01
300
04811-10750
O-RING
$5.07
