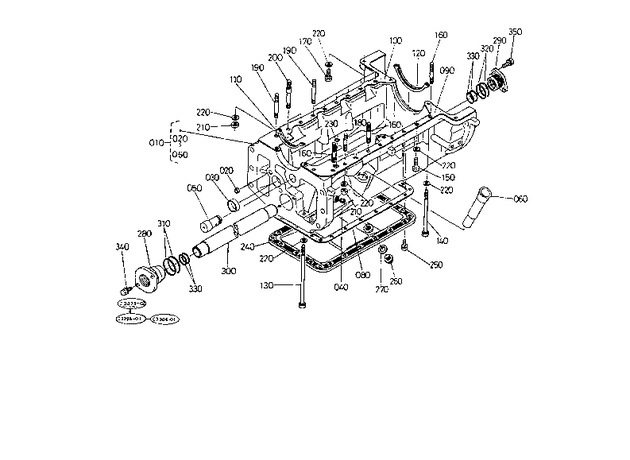

Kubota M7030 ENGINE T00403 OIL PAN [4WD NEW TYPE] ## S.No. V4000-3A-S1 V4300-1A-S1; FROM 80544

#
Part #
Item
Price
Qty
Add
010
16505-01502
COMP OIL PAN ***

product not available CALL FOR AVAILABILITY

$2,974.61
020
06311-85016
CAP, SEALING (ENGINE) ***
$2.04
030
16541-96290
CAP, SEALING

product not available CALL FOR AVAILABILITY

$3.09
040
15521-96020
PLUG *
$2.82
050
15451-24260
SHAFT, IDLE GEAR

product not available CALL FOR AVAILABILITY

$137.89
060
16121-33110
PIPE, OIL FILLER

product not available CALL FOR AVAILABILITY

$58.59
080
15451-01683
GASKET, OIL PAN ***
$41.74
090
16141-01620
GASKET, OIL PAN NA
$30.82
100
16141-01630
GASKET
$35.19
110
16541-01640
GASKET, OIL PAN 3
$19.32
120
16541-01650
GASKET, OIL PAN 4
$37.26
130
16541-91010
BOLT

product not available CALL FOR AVAILABILITY

$29.40
140
15451-91020
BOLT ***

product not available CALL FOR AVAILABILITY

$16.94
150
15707-91030
BOLT
$16.73
160
15481-91500
STUD (OIL PAN)

product not available CALL FOR AVAILABILITY

$6.28
170
01076-51038
BOLT
$2.83
180
15454-91500
STUD 2

product not available CALL FOR AVAILABILITY

$6.85
190
16541-91500
STUD

product not available CALL FOR AVAILABILITY

$34.02
200
16541-91510
STUD

product not available CALL FOR AVAILABILITY

$10.80
210
02076-50100
NUT,M10 6T ***

product not available CALL FOR AVAILABILITY

$0.99
220
04512-50100
WASHER,M10 SPRING LOCK ***
$0.57
230
04811-06110
O-RING
$1.98
240
15451-01676
COVER, OIL PAN
$246.99
250
01123-50818
BOLT M8x1.25x18 mm ***
$0.75
260
15707-33750
PLUG, DRAIN
$9.42
270
15451-96670
GASKET, COPPER *
$2.00
280
16541-01890
FLANGE ***
$84.95
290
16505-01900
FLANGE ***

product not available CALL FOR AVAILABILITY

$113.78
300
16541-01880
PIPE (OIL PAN) ***
$82.48
310
04814-50650
O-RING
$6.24
320
04814-06500
O-RING

product not available CALL FOR AVAILABILITY

$3.83
330
04814-06420
O-RING
$4.16
340
01754-50816
BOLT M8x1.25x16 mm ***
$3.72
350
01123-50822
BOLT M8x1.25x22 mm ***
$0.94
