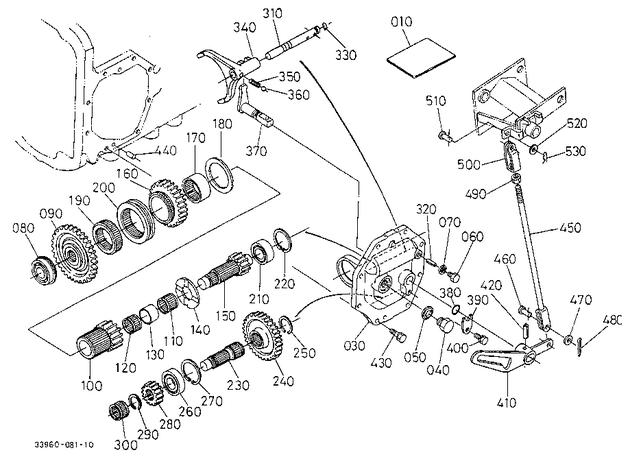

Kubota M7580DT TRANSMISSION T08500 CREEP [OPTION]

#
Part #
Item
Price
Qty
Add
010
33960-97050
INST MNL

product not available CALL FOR AVAILABILITY

$58.04
030
33740-31210
CASE, CREEP
$1,417.97
040
06331-35020
PLUG ***
$4.34
050
04717-02000
WASHER, SEAL W/RUBBER
$2.90
060
06331-35010
PLUG ***
$2.65
070
04717-01000
WASHER, SEAL W/RUBBER
$1.94
080
08151-06305
BEARING, BALL (RADIAL) 25/62 *
$14.17
090
33740-31812
GEAR, 38T
$570.02
100
33960-31820
GEAR, CREEP 16T
$629.94
110
33860-31630
BEARING, NDL ROLLER 30/38

product not available CALL FOR AVAILABILITY

$30.28
120
33740-31690
BRG NDL ROLLER30/38
$15.95
130
33740-31670
COLLAR
$30.19
140
38450-25230
COLLAR, THRUST

product not available CALL FOR AVAILABILITY

$18.52
150
H3370-31620
GEAR-SHAFT

product not available CALL FOR AVAILABILITY

$482.09
160
33740-31710
GEAR, 32T
$253.16
170
33740-31660
RING, INNER
$61.70
180
33740-31610
COLLAR, THRUST
$16.81
190
33740-31640
COUPLING
$70.83
200
36330-28473
SHIFTER

product not available CALL FOR AVAILABILITY

$127.82
210
33740-31180
BEARING, CYL ROLLER 25/52 (CRP SPD KIT)*
$82.18
220
04611-00520
CIR-CLIP, INTERNAL
$2.90
230
33740-31680
SHAFT, CREEP ***
$115.38
240
33740-31650
GEAR, 34T
$282.41
250
38430-25540
CIR-CLIP, EXTERNAL
$7.29
260
67121-56770
BEARING, BALL (RADIAL) *
$14.77
280
33740-31760
GEAR,15T CREEP ***
$57.35
290
38430-21550
CIR-CLIP, EXTERNAL
$9.45
300
08812-22920
BEARING, NEEDLE ROLLER 22/29

product not available CALL FOR AVAILABILITY

$9.83
310
3T000-31720
ROD,FORK,CREEP

product not available CALL FOR AVAILABILITY

$38.10
320
05411-00622
PIN, SPRING
$1.12
330
04816-00120
O-RING
$1.66
340
33740-31730
FORK, CREEP S-CHANGE ***
$317.63
350
62231-18530
SPRING, STOPPER
$5.03
360
07715-03211
BALL (CREEP SPEED KIT COMPONENT)
$0.27
370
33740-31740
SHAFT, SHIFT LEVER
$58.12
380
04816-00160
O-RING (CREEP SPEED KIT COMPONENT)
$1.72
390
34150-24350
STOPPER, LEVER (KIT COMP CREEP SPEED) **
$8.65
400
01123-50816
BOLT M8x1.25x16 mm ***
$0.69
410
33740-31440
LEVER, CREEP SHIFT ***
$141.98
420
05411-00636
PIN, SPRING
$1.30
430
01133-51030
BOLT M10x1.25x30 mm *
$2.18
440
05012-01020
PIN, STRAIGHT
$1.30
450
36530-29640
ROD ***

product not available CALL FOR AVAILABILITY

$83.16
460
05122-51022
PIN, JOINT
$2.52
470
04011-50100
WASHER, PLAIN ***
$0.31
480
05511-50318
PIN, SPLIT ***
$0.31
490
02116-50100
NUT, HEX M10 ***
$0.31
500
38240-24360
JOINT, FORK
$16.48
510
05122-51025
PIN, JOINT ***

product not available CALL FOR AVAILABILITY

$1.94
530
05515-71000
PIN,SNAP
$1.27
