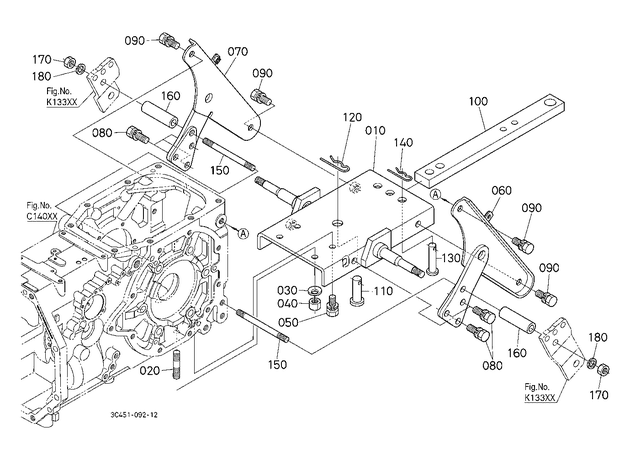

3-POINT LINKAGE DRAWBAR HITCH L11001 SWINGING DRAWBAR [EXCEPT [PC]] [OLD] ## S.No.; TO 83396 [NOTE O

#
Part #
Item
Price
Qty
Add
010
3C471-97010
KIT BRACKET, DRAWBAR *
$1,308.54
020
35707-49153
STUD, WHEEL
$19.46
030
RD451-19140
SPRING, PLATE *
$8.28
040
36500-49390
NUT, M16
$7.44
050
01138-51640
BOLT M16x1.5x40 mm
$2.95
060
3C451-89332
BRACKET (R, TENSION, L)

product not available CALL FOR AVAILABILITY

$628.48
070
3C451-89342
BRACKET (R, TENSION, R)

product not available CALL FOR AVAILABILITY

$628.48
080
01138-51645
BOLT M16x1.5x45 mm
$2.59
090
01138-51635
BOLT M16x1.5x35 mm
$1.95
100
3A111-89120
DRAWBAR
$311.10
110
32530-71760
PIN, DRAWBAR
$20.83
120
70515-16330
PIN, SPRING
$11.25
130
05122-52070
PIN, JOINT ***
$10.51
140
05515-51600
PIN, SNAP
$1.17
150
3A011-21782
STUD

product not available CALL FOR AVAILABILITY

$25.23
160
3C451-91050
SPACER, STUD

product not available CALL FOR AVAILABILITY

$37.30
170
02176-50160
NUT, HEX
$1.94
180
04512-70160
WASHER,SPRING
$0.90
