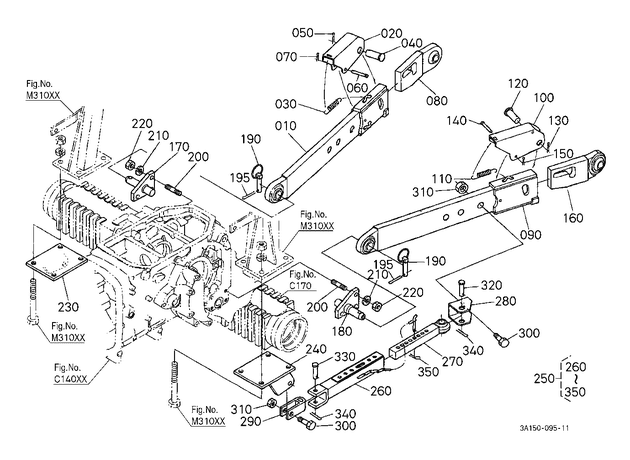

3-POINT LINKAGE DRAWBAR HITCH K12501 LOWER LINK [OLD TYPE] ## S.No.; TO 50840

#
Part #
Item
Price
Qty
Add
010
3A151-92010
COMP LINK,LOWER RH
$704.42
020
3F760-92190
LEVER,QUICK
$44.98
030
33660-92170
SPRING, QUICK
$18.95
040
3F760-92160
PIN QUICK
$35.86
050
05511-50435
PIN, SPLIT ***
$0.31
060
05122-51060
PIN, JOINT
$3.38
070
05511-50320
PIN, SPLIT ***
$0.31
080
3F760-92030
COMP.LINK RH
$332.61
090
3A151-92110
COMP LINK, LOWER LH
$684.86
160
3F760-92130
COMP,LINK LH
$332.61
170
3A151-91880
PIN, LIFT ROD RH
$179.06
180
3A151-91890
PIN
$201.63
190
36330-91840
ASSY PIN, SET
$8.30
195
05511-50420
PIN, SPLIT
$0.31
200
36530-93040
STUD

product not available CALL FOR AVAILABILITY

$11.32
210
04512-50140
WASHER, SPRING ***
$0.31
220
02176-50140
NUT
$1.30
230
3A151-91080
BRACKET RH

product not available CALL FOR AVAILABILITY

$168.52
240
3A151-91090
BRACKET LH

product not available CALL FOR AVAILABILITY

$215.02
270
3A111-92500
ASSY STABILIZER, HEAVY DUTY *
$347.92
280
3A111-92210
BRACKET, STABILIZER ***
$24.28
290
3A011-92100
BRACKET, FRONT STAB.***

product not available CALL FOR AVAILABILITY

$8.05
300
3A011-92250
BOLT,M8200,M8200DT,M9000

product not available CALL FOR AVAILABILITY

$5.23
310
75599-31918
NUT, NYLOCK 3/4-10 PTD
$3.43
320
70388-58770
PIN
$11.25
330
3A011-92280
PIN, JOINT ***

product not available CALL FOR AVAILABILITY

$0.99
340
75599-52225
PIN,SPRING(1/8*11/4)
$0.62
350
70050-02036
HAIRPIN, CLIP M 1/8x2 9/16 PTD
$1.12
