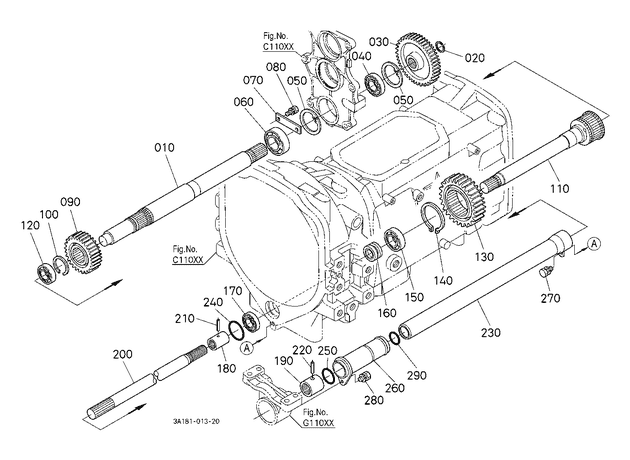

Kubota M9000DTM FRONT AXLE CHASSIS G14000 FRONT PROPELLER SHAFT

#
Part #
Item
Price
Qty
Add
010
3A181-41210
SHAFT, PROPELLER
$237.44
020
38430-25540
CIR-CLIP, EXTERNAL
$7.29
030
3A161-41230
GEAR 38T,DT

product not available CALL FOR AVAILABILITY

$236.13
040
08101-06306
BEARING, BALL (RADIAL)
$15.18
050
04611-00720
CIR-CLIP, INTERNAL
$7.60
060
08101-06207
BEARING,BALL RADIAL 35/72 ***
$13.98
070
3A011-28690
RETAINER (CREEP SPEED KIT COMPONENT)

product not available CALL FOR AVAILABILITY

$5.41
080
01128-50825
BOLT M8x1.25x25 mm *
$1.35
080
01123-50825
BOLT M8x1.25x25 mm *
$1.04
090
3A181-41140
GEAR, 4WD
$214.74
100
33740-27292
CIR-CLIP,EXTERNAL
$30.43
110
3A181-41330
SHAFT PROPELLER
$605.29
120
37410-57190
BEARING, BALL (RADIAL)
$25.02
130
3A181-41180
GEAR,4WD
$478.85
140
04612-00650
CIR-CLIP, EXTERNAL
$4.98
150
37410-57330
BEARING, BALL (RADIAL) 30/62
$29.00
160
3A161-41260
OIL SEAL
$14.25
170
08141-60028
BEARING BALL

product not available CALL FOR AVAILABILITY

$29.95
180
3A181-41310
COUPLING
$48.02
190
33750-41310
COUPLING *
$53.24
200
3A181-41320
SHAFT,PROPELLER
$264.97
210
05411-00635
PIN, SPRING
$0.69
220
05411-00640
PIN, SPRING
$1.30
230
3A161-41342
COVER, PROPELLER

product not available CALL FOR AVAILABILITY

$109.47
240
04811-10530
O RING
$3.94
250
04811-00480
O RING
$4.17
250
04816-00480
O RING
$5.37
260
3C091-41350
COVER, SHAFT FRONT
$51.18
270
01123-50816
BOLT M8x1.25x16 mm ***
$0.69
280
01123-50820
BOLT M8x1.25x20 mm ***
$0.85
290
04811-00420
O RING
$3.42
290
04816-00420
O RING
$5.37
