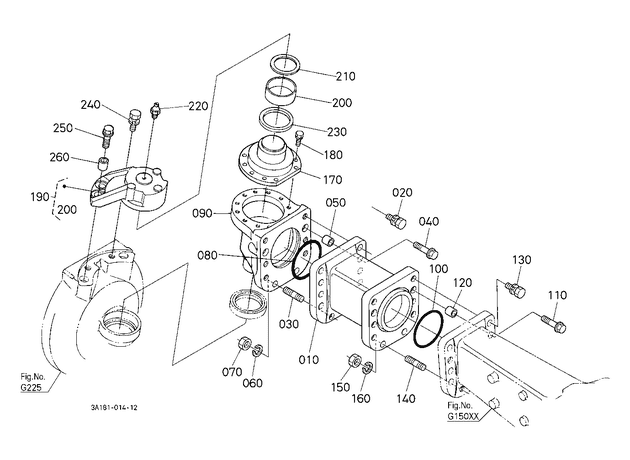

Kubota M9000DTM FRONT AXLE CHASSIS G22002 BEVEL GEAR CASE (WITH 80 INCH TREAD)

#
Part #
Item
Price
Qty
Add
010
3A181-43950
SPACER
$150.14
020
01138-51445
BOLT M14x1.5x45 mm
$3.80
030
01517-51440
STUD ***
$3.38
040
36340-43180
BOLT, UBS

product not available CALL FOR AVAILABILITY

$4.13
050
35533-43170
PIPE, KNOCK

product not available CALL FOR AVAILABILITY

$8.62
060
04512-50140
WASHER, SPRING ***
$0.31
070
02176-50140
NUT
$1.30
080
04811-51000
O RING
$5.79
090
35533-43316
CASE,BEVEL GEAR

product not available CALL FOR AVAILABILITY

$1,140.71
130
01133-51440
BOLT M14x1.5x40 mm ***
$3.03
170
3A121-43320
COVER

product not available CALL FOR AVAILABILITY

$188.70
180
01123-50825
BOLT M8x1.25x25 mm *
$1.04
190
3A121-43303
ASSY, FRONT SUPPORT C

product not available CALL FOR AVAILABILITY

$256.95
200
35533-43350
BUSHING
$71.33
210
35533-43330
WASHER, THRUST

product not available CALL FOR AVAILABILITY

$7.22
220
06611-15010
NIPPLE,GREASE
$3.04
230
33750-43350
SEAL,OIL (VC65X80X5)
$18.50
240
01138-51430
BOLT M14x1.5x30 mm ***
$2.54
250
36280-43180
BOLT, UBS

product not available CALL FOR AVAILABILITY

$4.42
