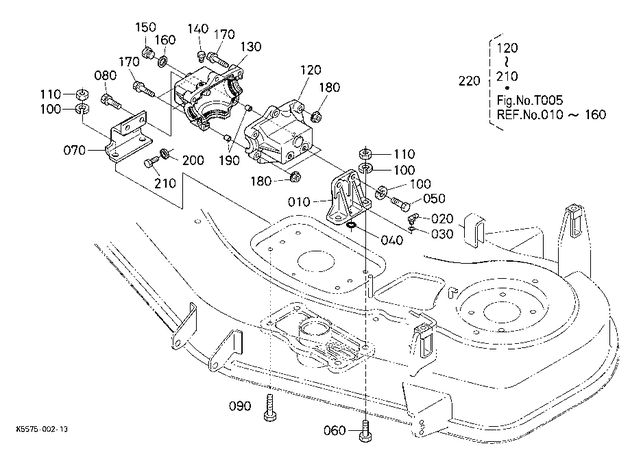

Kubota ZG23 MOWER T00400 BEVEL GEAR CASE

010

K5617-33130

STAY, BEVEL CASE LH * ***

product not available CALL FOR AVAILABILITY

$57.53

020

K5763-44252

NIPPLE (GREASE, 45 )

$1.56

030

K5763-27340

SHIM, ADJUST

$0.26

040

04816-06120

O RING, 12.3mm x 2.4mm

$1.94

050

K5617-33220

BOLT, REAMER M10x30

$7.44

060

K5617-33230

BOLT, REAMER M10-35

$8.24

070

K5617-33150

STAY, BEVEL CASE RH

product not available CALL FOR AVAILABILITY

$11.22

080

01123-51025

BOLT M10x1.5x25 mm ***

$1.44

090

01173-51030

BOLT M10x1.25x30 mm ***

$1.52

100

04512-50100

WASHER,M10 SPRING LOCK ***

$0.57

110

02118-50100

NUT, HEX 4T M10X1.25 (CRP SPD KIT) ***

$0.69

120

K5243-33112

CASE, BEVEL RIGHT *

$440.85

130

K5243-33133

CASE, BEVEL LEFT *

$440.85

130

K5243-33132

CASE, BEVEL GEAR LH ***

product not available CALL FOR AVAILABILITY

$421.71

140

K5761-33252

PLUG, BREATHER

$25.55

150

06331-35016

PLUG ***

$3.04

160

04724-00160

GASKET, COPPER

$1.72

170

01754-50840

BOLT M8x1.25x40 mm ***

$4.88

180

02751-50080

NUT,HEX M8X1.25 FLANGE 4T

$3.97

190

08511-00810

BUSHING

product not available CALL FOR AVAILABILITY

$3.34

200

04717-00800

WASHER, w/RUBBER

$1.94

210

01153-50812

BOLT ***

$0.69

220

K5617-33102

ASSY GEARCASE, MOWER *

$1,519.41
