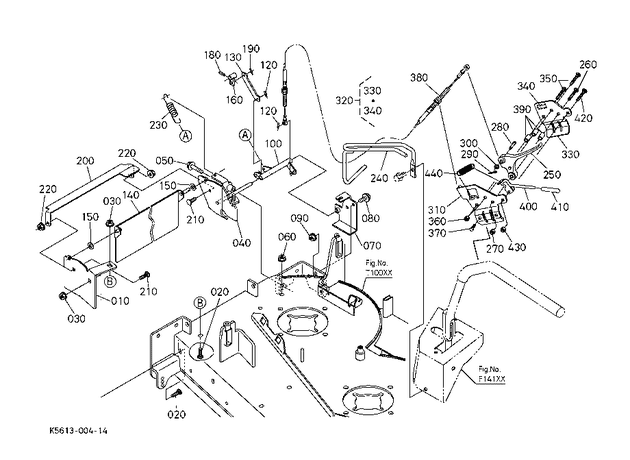

Kubota Z724KH MOWER T98002 OPERATOR CONTROL DISCHARGE CHUTE [OPTION] ## [OCDC-54 Z700]

#
Part #
Item
Price
Qty
Add
010
K5613-98010
BRACKET,FRONT

product not available CALL FOR AVAILABILITY

$32.03
020
K3151-82523
BOLT,M10x1 SQU NECK
$1.00
030
02131-50100
NUT ***
$0.52
040
K5613-98020
BRACKET, OCDC *

product not available CALL FOR AVAILABILITY

$82.40
050
01774-51050
BOLT M10x1.25x50 mm ***
$3.87
070
K5613-98030
BRACKET(WIRE) *

product not available CALL FOR AVAILABILITY

$26.95
080
01774-51025
BOLT M10x1.25x25 mm ***
$3.03
100
K5663-98040
COMP LEVER(OCDC) * ***

product not available CALL FOR AVAILABILITY

$39.44
120
K1211-91112
COTTER, RUE RING
$1.00
130
K5663-98050
PLATE(CONNECTING ARM

product not available CALL FOR AVAILABILITY

$8.75
140
K5613-98060
COVER(OCDC)

product not available CALL FOR AVAILABILITY

$131.00
150
04011-50100
WASHER, PLAIN ***
$0.31
160
K5663-98070
LINK,COVER,ARM * ***

product not available CALL FOR AVAILABILITY

$15.40
180
05411-00525
PIN, SPRING *
$1.12
200
K5613-98080
PLATE,COVER,TOP

product not available CALL FOR AVAILABILITY

$48.32
210
K1122-91332
BOLT,M8x1.25 SHORT SQ NECK ***
$0.52
220
02751-50080
NUT,HEX M8X1.25 FLANGE 4T
$3.97
230
K7711-43442
SPRING * ***
$9.63
240
K5663-98192
STAY,WIRE * ***

product not available CALL FOR AVAILABILITY

$25.28
250
K5663-98112
LEVER, OCDC * ***

product not available CALL FOR AVAILABILITY

$49.67
260
01611-50635
BOLT,SQUARE NECK ***

product not available CALL FOR AVAILABILITY

$3.19
270
02552-50060
NUT 4,M6 SELF-LOCKING ***
$1.30
280
05122-50625
PIN, JOINT ***
$1.94
290
05511-51615
PIN, SPLIT ***
$0.31
300
04013-50060
WASHER, PLAIN ***
$0.52
310
K5663-98122
BRACKET (LEVER, OCDC, 1

product not available CALL FOR AVAILABILITY

$27.27
320
K5663-98200
ASSY BRACKET, OCDC
$78.57
330
K5663-98132
BRACKET, LEVER, OCDC, 2

product not available CALL FOR AVAILABILITY

$21.45
340
K5663-98180
LABEL(PATENT)

product not available CALL FOR AVAILABILITY

$2.64
370
K3011-61370
BOLT, M6 ROLLING ***

product not available CALL FOR AVAILABILITY

$5.47
380
K5663-98145
WIRE, OCDC ***

product not available CALL FOR AVAILABILITY

$11.38
390
K5663-98150
TUBE(SPACER) *

product not available CALL FOR AVAILABILITY

$5.01
400
K5663-98162
PLATE(LOCKING) * ***

product not available CALL FOR AVAILABILITY

$24.12
410
K5663-98170
GRIP(HANDLE)

product not available CALL FOR AVAILABILITY

$0.99
440
K1271-94162
SPRING, RETURN
$7.98
