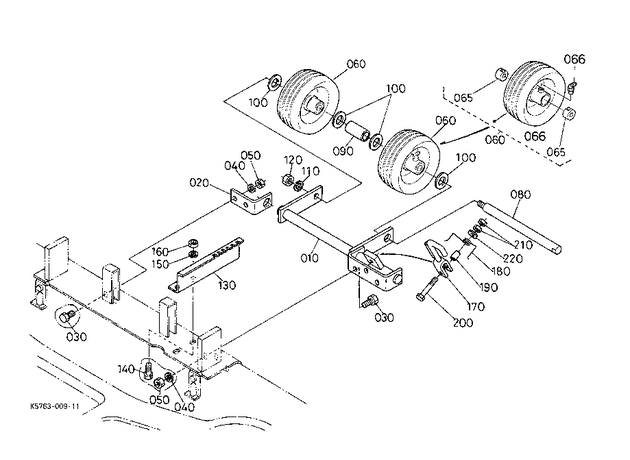

Kubota B1700D MOWER A10602 REAR WHEEL

010

K5763-44110

ARM, REAR WHEEL

product not available CALL FOR AVAILABILITY

$109.27

020

K5763-44130

BRACKET, REAR WHEEL

$6.19

030

01073-51025

BOLT M10x1.25x25 mm ***

$1.87

040

04512-50100

WASHER,M10 SPRING LOCK ***

$0.57

050

02018-50100

NUT, 10MM X 1.25 ***

$0.69

060

K5763-42132

ASSY WHEEL, GAUGE 6.25x3

$52.94

065

K5763-74270

BUSHING #87038

$7.57

066

K5763-74280

NIPPLE, GREASE#4760

$7.96

066

K5763-74230

NIPPLE GREASE ***

product not available CALL FOR AVAILABILITY

$4.83

080

K5763-44172

SHAFT, REAR WHEEL

$61.73

090

K5763-44182

COLLAR, REAR WHEEL *

$8.64

100

75599-32018

WASHER, FLAT 3/4" SAE PTD PLAIN ***

$2.89

110

04512-50120

WASHER, SPRING LOCK ***

$2.21

120

02074-50120

NUT ***

$0.92

130

K5763-45110

PLATE, GUIDE

product not available CALL FOR AVAILABILITY

$15.15

170

K5763-45172

LEVER REAR WHEEL

$27.90

180

K5763-45192

SPRING, RETURN *

$5.97

190

K5763-33192

COLLAR, LEVER

product not available CALL FOR AVAILABILITY

$3.85

200

01053-50860

BOLT M8x1.25x60 mm ***

$1.44

210

02054-50080

NUT, HEX M8x1.25, 4T ***

$1.72

220

75599-32012

WASHER,FLAT 5/16 (3/8"INT) PLAIN PTD *

$0.13
