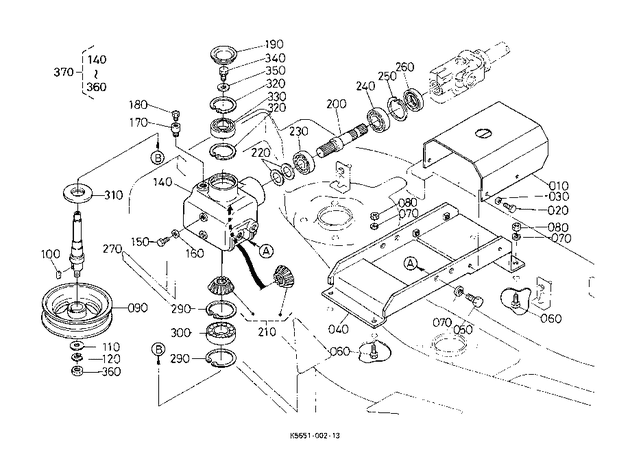

Kubota F2560E MOWER S40400 BEVEL GEAR CASE

#
Part #
Item
Price
Qty
Add
010
K5651-33030
COVER, JOINT

product not available CALL FOR AVAILABILITY

$23.98
020
01053-50818
BOLT M8x1.25x18 mm ***
$0.53
030
75599-33012
WASHER,LOCK 5/16 PTD *
$0.18
040
K5651-33130
STAY GEAR CASE

product not available CALL FOR AVAILABILITY

$108.11
050
01073-51218
BOLT
$1.32
060
01073-51225
BOLT M12x1.25x25 mm ***
$1.31
070
04512-50120
WASHER, SPRING LOCK ***
$1.70
080
02074-50120
NUT ***
$0.71
090
K5651-33580
PULLEY, SIDE
$85.08
100
05712-00722
KEY, FEATHER
$1.49
110
K5651-34560
WASHER, PLAIN
$3.42
120
75599-33017
WASHER,5/8 SPRING LOCK *
$0.54
140
K5651-33110
CASE, BEVEL GEAR
$514.09
150
01173-51014
BOLT M10x1.25x14 mm ***

product not available CALL FOR AVAILABILITY

$0.99
160
04717-01000
WASHER, SEAL W/RUBBER
$1.49
170
K5651-33210
PIPE, BREATHER

product not available CALL FOR AVAILABILITY

$16.40
180
K5761-33252
PLUG, BREATHER
$22.22
190
55314-22430
CAP, ROLLER
$19.19
200
K5651-33310
SHAFT, PINION ***
$140.17
210
K5651-33320
KIT, BEVEL GEAR
$467.21
220
70720-33360
SHIM 2
$6.94
220
70720-33350
SHIM 1
$6.94
230
76546-33380
BRG BALL RADIAL25/52
$38.48
240
08101-06205
BEARING,BALL RADIAL 25/52 ***
$9.97
250
04611-00520
CIR-CLIP, INTERNAL
$2.23
260
76535-33440
SEAL, OIL
$23.54
270
K5651-33510
SHAFT, BEVEL GEAR
$288.87
290
04611-00620
CIR-CLIP, INTERNAL
$3.71
300
08101-06305
BEARING,BALL(RADIAL)
$12.26
310
76535-33530
OIL SEAL
$21.49
320
04611-00470
CIR-CLIP, INTERNAL
$1.94
330
08101-06303
BEARING, BALL (RADIAL) ***
$12.01
340
01123-50818
BOLT M8x1.25x18 mm ***
$0.58
350
04015-50080
WASHER, PLAIN ***
$0.24
360
02172-50160
NUT, 149400 ***
$1.49
370
K5651-33103
ASSY CASE, BEVEL GEAR

product not available CALL FOR AVAILABILITY

$1,575.50
