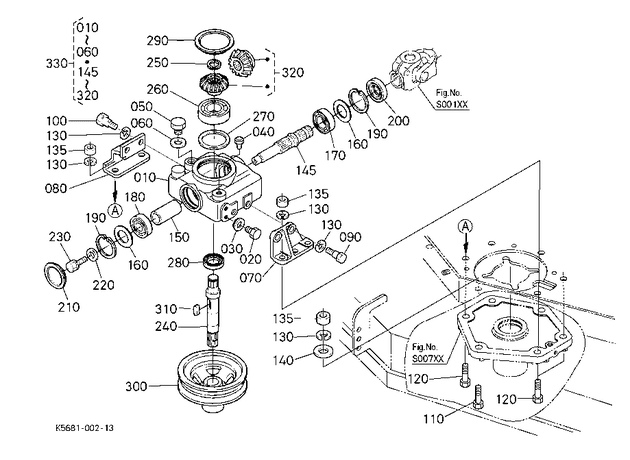

Kubota F2680E MOWER S00400 BEVEL GEAR CASE

#
Part #
Item
Price
Qty
Add
010
K5681-33110
CASE, BEVEL GEAR
$467.92
020
01153-50812
BOLT ***
$0.69
030
04717-00800
WASHER, w/RUBBER
$1.94
040
K5761-33252
PLUG, BREATHER
$25.55
050
06331-35016
PLUG ***
$3.04
060
04711-00300
GASKET, PACKING
$0.52
070
K5647-33130
STAY, CASE LH

product not available CALL FOR AVAILABILITY

$51.07
080
K5647-33150
STAY, CASE RH ***

product not available CALL FOR AVAILABILITY

$10.85
090
K5763-33210
BOLT, REAMER 30
$5.01
100
K5647-33232
BOLT, REAMER 40
$2.34
110
01073-51225
BOLT M12x1.25x25 mm ***
$1.70
120
01073-51240
BOLT M12x1.25x40 mm ***
$2.18
130
04512-50120
WASHER, SPRING LOCK ***
$2.21
135
02074-50120
NUT ***
$0.92
140
04015-50120
WASHER, PLAIN ***
$0.79
145
K5645-33312
SHAFT, PINION
$237.03
150
K5671-33342
COLLAR
$12.24
160
36330-28410
SHIM, 0.3MM
$5.67
160
36330-28420
SHIM, 0.2MM
$2.82
170
08101-06205
BEARING,BALL RADIAL 25/52 ***
$10.30
180
08101-06304
BEARING, BALL
$10.90
190
04611-00520
CIR-CLIP, INTERNAL
$2.90
200
76535-33440
SEAL, OIL
$27.07
210
63313-32270
CAP
$10.14
220
04015-50100
WASHER, PLAIN *** ***
$0.52
230
01133-51025
BOLT M10x1.25x25 mm ***
$2.02
240
K5647-33500
SHAFT, BEVEL GEAR
$153.83
250
04612-00220
CIR-CLIP, EXTERNAL
$0.92
260
70712-33550
BEARING, BALL
$30.59
260
K5687-33550
BEARING,62/32 SH
$31.39
270
70712-33570
SHIM, 0.1MM
$3.08
270
76539-33410
SHIM, 0.2mm
$13.27
280
K5761-33540
SEAL, OIL
$29.79
290
7C765-51260
CAP
$26.84
300
K5371-33520
PULLEY,CENTER
$91.33
310
05712-00728
KEY, FEATHER
$2.52
320
K5761-33320
KIT GEAR, BEVEL *
$468.58
330
K5681-33104
ASSY GEARCASE,BEVEL *
$1,632.61
