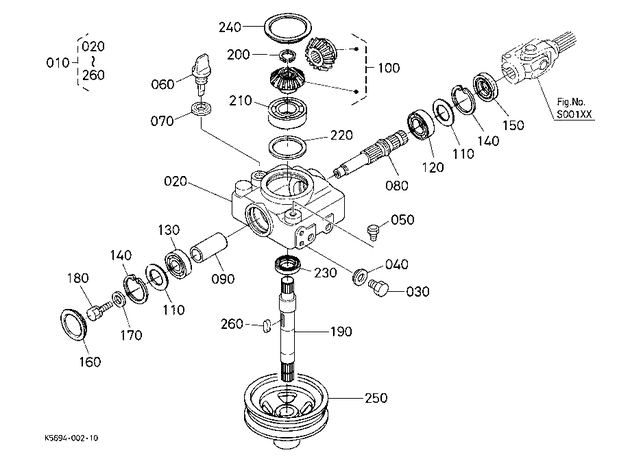

Kubota F2690 MOWER S00500 BEVEL GEAR CASE [COMPONENT PARTS]

#
Part #
Item
Price
Qty
Add
010
K5694-33100
ASSY CASE,BEVEL GEAR

product not available CALL FOR AVAILABILITY

$1,484.68
020
K5681-33110
CASE, BEVEL GEAR
$467.92
030
01754-50812
BOLT M8x1.25x12 mm ***
$3.37
040
04717-00810
WASHER, SEAL
$2.70
050
K5761-33252
PLUG, BREATHER
$25.55
060
K5655-33140
GAUGE, OIL
$5.22
070
04717-01610
WASHER, SEAL ***
$2.52
080
K5645-33312
SHAFT, PINION
$237.03
090
K5671-33342
COLLAR
$12.24
100
K5763-33320
KIT GEAR BEVEL *
$482.64
110
36330-28420
SHIM, 0.2MM
$2.82
110
36330-28410
SHIM, 0.3MM
$5.67
120
08101-06205
BEARING,BALL RADIAL 25/52 ***
$10.30
130
08101-06304
BEARING, BALL
$10.90
140
04611-00520
CIR-CLIP, INTERNAL
$2.90
150
76535-33440
SEAL, OIL
$27.07
160
63313-32270
CAP
$10.14
170
04015-50100
WASHER, PLAIN *** ***
$0.52
180
01133-51025
BOLT M10x1.25x25 mm ***
$2.02
190
K5662-33500
SHAFT, BEVEL GEAR
$124.97
200
04612-00220
CIR-CLIP, EXTERNAL
$0.92
210
K5687-33550
BEARING,62/32 SH
$31.39
220
70712-33570
SHIM, 0.1MM
$3.08
220
76539-33410
SHIM, 0.2mm
$13.27
230
K5761-33540
SEAL, OIL
$29.79
240
7C765-51260
CAP
$26.84
250
K5371-33520
PULLEY,CENTER
$91.33
260
05712-00728
KEY, FEATHER
$2.52
