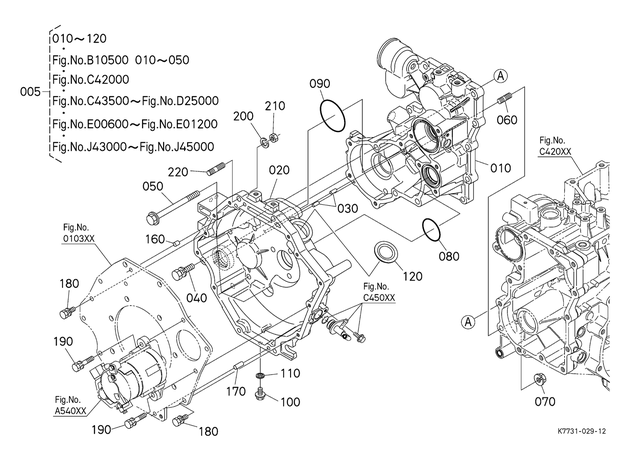

Kubota RTV-X1120DR TRANSMISSION C41500 FRONT CASE

#
Part #
Item
Price
Qty
Add
005
K7421-10035
TRANSAXLE,ASSY

product not available CALL FOR AVAILABILITY

$7,294.10
010
K7591-11116
COVER,FRONT * ***
$427.65
020
K7731-11030
COVER,FLYWHEEL ***
$345.40
030
05012-00614
PIN, STRAIGHT
$0.69
040
01133-51040
BOLT M10x1.25x40 mm ***
$2.47
050
01774-51004
BOLT M10x1.25x120 mm ***

product not available CALL FOR AVAILABILITY

$4.13
060
01519-51030
STUD ***
$1.72
070
K7591-11070
NUT,M10x1.25 S/W *
$3.72
080
04817-06470
O RING
$7.44
090
04811-06670
O-RING
$6.24
100
01754-50812
BOLT M8x1.25x12 mm ***
$3.37
110
04717-00810
WASHER, SEAL
$2.70
120
63313-35420
CAP
$8.30
120
37410-13124
PLUG
$7.77
130
K7311-11060
PLUG, HOLE SENSOR

product not available CALL FOR AVAILABILITY

$15.23
160
05012-00810
PIN, STRAIGHT
$0.92
170
05012-00816
PIN, STRAIGHT REAR
$1.12
170
05012-00820
PIN, STRAIGHT
$1.12
180
01123-50825
BOLT M8x1.25x25 mm *
$1.04
190
01123-50840
BOLT M8x1.25x40 mm ***
$1.52
200
04512-50100
WASHER,M10 SPRING LOCK ***
$0.57
210
02176-50100
NUT,HEX M10-1.25mm 6T ***
$0.69
220
01517-51040
STUD ***
$1.72
