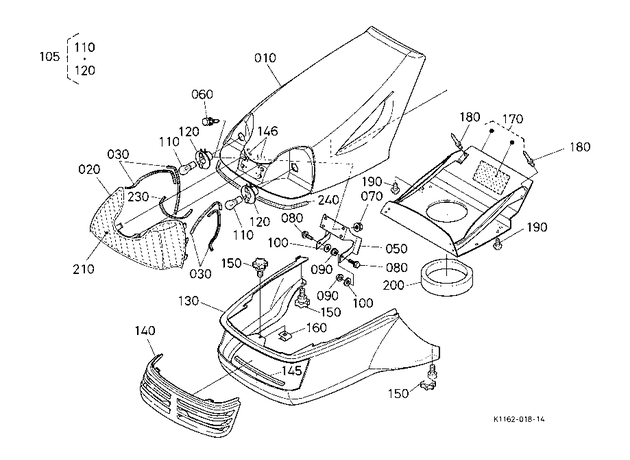

Kubota T1570 BONNET G00101 HOOD (BONNET)

#
Part #
Item
Price
Qty
Add
010
K1162-54112
BONNET, UPPER
$275.64
020
K1162-54122
LENS
$54.69
030
K1162-54252
SEAL 1, LENS
$5.67
050
K1042-54310
BRACKET, BONNET

product not available CALL FOR AVAILABILITY

$10.06
060
01053-50820
BOLT M8x1.25x20 mm ***
$0.75
070
02751-50080
NUT,HEX M8X1.25 FLANGE 4T
$3.97
080
01754-50820
BOLT M8x1.25x20 mm ***
$4.04
090
K5112-72842
NUT,HEX M8x1.25 LOCK
$0.31
100
K5112-72832
WASHER (PLAIN)
$0.31
105
K1025-54200
LAMP,ASSY ***
$31.63
110
K1122-54210
BULB ***
$1.30
120
K1122-54220
SOCKET

product not available CALL FOR AVAILABILITY

$3.47
130
K1025-54132
BONNET,UNDER
$163.40
140
K1162-54143
GRILL
$21.14
145
K1162-54160
SPACER
$0.91
146
K1162-54170
SPACER***
$3.48
150
K1122-91000
BOLT, KNOB (M6x1.0x15)
$8.63
160
K1122-91800
NUT,M6x1.0 SPRING ***
$1.66
170
K1162-95320
KIT, INTAKE COVER W/0 EC

product not available CALL FOR AVAILABILITY

$81.58
180
K1162-91930
RIVET

product not available CALL FOR AVAILABILITY

$0.99
190
K1162-25343
SCREW, TAPPING
$0.90
200
K1162-25320
i ONGE
$26.12
210
K1162-65410
REFLECTOR, HEAD LAMP *
$101.38
230
K1162-54270
SEAL 3, LENS
$5.64
240
K1162-54280
SEAL LENS
$5.84
