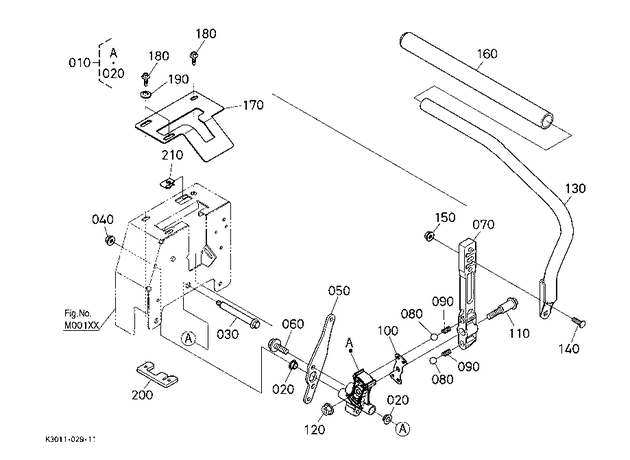

Kubota ZG124E MOTION CONTROL LEVER F14100 MOTION CONTROL LEVER LH

#
Part #
Item
Price
Qty
Add
010
K3012-42200
ARM,ASSY(CONTROL)

product not available CALL FOR AVAILABILITY

$25.81
020
K3011-42220
BUSHING, ARM
$1.94
030
K3011-42310
BOLT, SHOULDER PIVOT
$5.01
040
02751-50080
NUT,HEX M8X1.25 FLANGE 4T
$3.97
050
K3011-42153
BRACKET, DAMPER
$7.12
060
01774-51030
BOLT M10x1.25x30 mm ***
$3.21
070
K3011-42232
ARM, DETENT * ***
$59.41
080
07715-01607
BALL
$0.42
090
K3011-42260
SPRING, DETENT *
$1.13
100
K3011-42130
PLATE, ARM DETENT
$3.32
110
K3011-42250
BOLT, SHOULDER DETENT
$2.70
120
02771-50100
NUT, FLANGE M10X1.25 4T ***
$2.52
130
K3011-42353
LEVER, CONTROL LH

product not available CALL FOR AVAILABILITY

$23.57
140
K1122-91350
BOLT, SHORT SQ. NECK, ***

product not available CALL FOR AVAILABILITY

$0.99
140
K1122-91342
BOLT, SHORT SQ NECK

product not available CALL FOR AVAILABILITY

$1.57
150
K2511-55582
NUT, LOCK FLANGE
$0.61
160
K3181-42372
GRIP, SPEED
$10.52
170
K3012-42710
GUIDE(CONTROL,LH)

product not available CALL FOR AVAILABILITY

$17.23
180
K6073-91112
BOLT,F,BLACK M8*1.25 ***

product not available CALL FOR AVAILABILITY

$0.99
190
K3181-36880
SPRING, PLATE
$1.01
200
K3011-42760
STOPPER, CONTROL

product not available CALL FOR AVAILABILITY

$6.07
210
K1122-91810
NUT,M8x1.25 SPRING
$1.76
