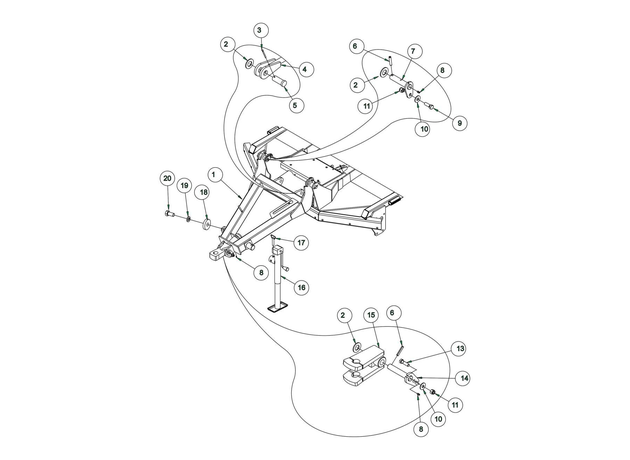

Hitch Frame

#
Part #
Item
Price
Qty
Add
1
FK-C185-110
FRONT CV HITCH
$0.00
2
FK-256-001
WASHER, 1", 1-1/16" ID X 2" OD SAE
$0.00
3
FK-271-006
COTTER PIN, 3/16 X 2, PLATED
$0.00
4
FK-C180-131
TENSION LINK
$0.00
5
FK-302-012
CLEVIS PIN 1 X 1-15/16" UL PL.
$0.00
6
FK-262-006
ROLL PIN, 3/8 X 2,
$0.00
7
FK-C306-145
PIN, 1" DIA, HITCH MOUNT
$0.00
8
FK-273-006
GREASE NIPPLE, SELF-TAP, 1/4-28
$0.00
9
FK-250-059
BOLT, 1/2 X 1-1/2 UNC, GR5, PLATED,
$0.00
10
FK-256-011
WASHER, 1/2, AS TYPE A, 9/16 IDX1-3/8 ODX.109,
$0.00
11
FK-270-007
LOCKNUT, 1/2 UNC, PLATED
$0.00
13
FK-250-060
BOLT, 1/2 X 1-3/4 UNC, GR5, PLATED,
$0.00
14
FK-CS01-134
PIN, 1" X 4-11/16`,
$0.00
15
FK-C502-815
HITCH CLEVIS2-3/16" HOLE, UP TO 2-11/16" DRAWBAR
$0.00
15
FK-CS01-106
OPEN CLEVIS
$0.00
16
FK-232-825
SCREW JACK, SIDE WIND,15", TUBE MNT.
$0.00
17
FK-232-724
PIN & CHAIN ASSEMBLY, 7000 LBS
$0.00
18
FK-C520-118
10,000 LB SAFETY CHAIN WASHER, 2-1/2" X 13/16" X 1/2" PLATED
$0.00
19
FK-255-003
LOCKWASHER, 3/4",
$0.00
20
FK-250-116
BOLT, 3/4 X 1-1/2 UNC, GR5, PLATED,
$0.00
