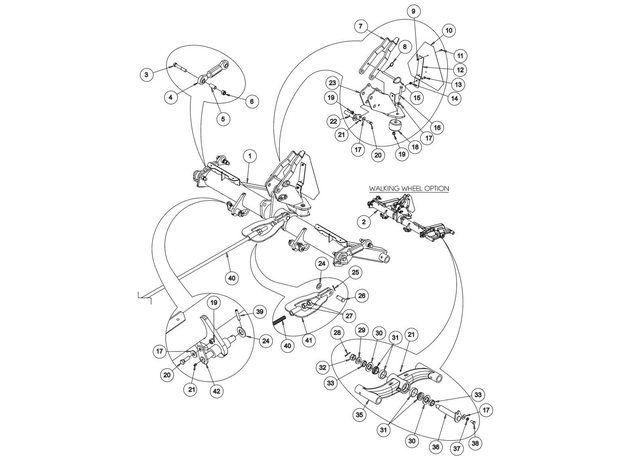

Schulte Schulte FX-1200 With Serial Numbers: sn C19510001009-C19510061212 Center Wheel Beam

1

C180-116

CENTER WHEEL STD-USE C180-216

$3,870.30

2

C180-126

CENTER WHEEL WALK-USE C180-226

$4,722.70

3

250-144

BOLT 3/4"" X 4-1/2"" UNC GR5 PL

$8.23

4

232-021

TURNBUCKLE 10-1/8MIN 12-5/8MAX

$208.89

5

C180-133

MECHANICAL LINK SPACER

$26.25

6

270-001

LOCKNUT 3/4 UNC PLATED

$2.78

7

C180-136

FX-180 CENTER LOCK UP

$244.90

8

300-0120

LINCH PIN 3/16 STANDARD

$2.96

9

270-025

LOCKNUT 1/4 UNC PLATED

$1.12

10

S000-110

SMV SIGN GALV W/ BLACK OVERLAY

$76.63

11

250-0021

1/4 X3/4 NC GR 5 HCS YZ

$0.53

12

C000-013

SMV MOUNT BRACKET

$47.95

13

250-018

BOLT 3/8 X 1 UNC GR5

$0.98

14

270-017

LOCKNUT 3/8 UNC PLATED

$0.72

15

C180-141

SAFETY LOCK-UP PIN

$53.50

16

250-048

BOLT 1/2 X 4 UNC GR5 PLATED

$5.14

17

256-011

WASHER1/2 AS A 9/16X1-3/8X.109

$0.77

18

233-053

RUBBER PUCK 70DURO 3-1/2X2-3/8

$41.26

19

270-007

LOCKNUT 1/2 UNC PLATED

$1.09

20

250-059

BOLT 1/2X1-1/2 UNC GR5 PLATED

$1.88

21

273-006

GREASE NIPPLE SELF-TAP 1/4-28

$3.43

22

C306-148

PIN 1"" DIAX4-1/4""UL ZINC PL.

$151.65

23

C180-121

SUSPENSION MOUNT

$368.26

24

256-001

WASHER 1"" 1-1/16""IDX2"" OD SAE

$3.28

25

271-006

COTTER PIN 3/16 X 2 PLATED

$0.72

26

302-012

CLEVIS PIN 1X1-15/16""UL PL.

$23.90

27

257-008

NUT 1"" UNC PLATED

$3.26

28

271-005

COTTER PIN 3/16 X 1-1/2

$0.57

29

256-068

MACHINE BUSHING 1-1/32""X2""X7GA

$5.79

30

207-021

SEAL

$13.36

31

207-016

RACE TAPERED

$19.20

32

209-011

SLOTTED NUT 1X14 UNS GR2

$11.53

33

803-001

SPACER SLEEVE WALKING AXLE

$28.31

34

207-015

BEARING TAPERED ROLLER

$37.46

35

231-022

CAST WLKNG AXL 10"SEE 231-029A

$432.32

36

150-16

PIVOT PIN WALKIN

$142.05

37

255-009

LOCKWASHER 1/2

$0.57

38

250-063

BOLT 1/2 X 1 UNC GR5 PLATED

$1.54

39

262-006

ROLL PIN 3/8 X 2

$4.34

40

C180-131

TENSION LINK

$264.65

41

C180-132

TENSION LINK FLOAT LUG

$234.50

42

A101-148

PIN CYL 1X4-21/32 USE C318-148

$76.59

43

207-057

WALKING BEAM REPAIR KIT

$132.58
