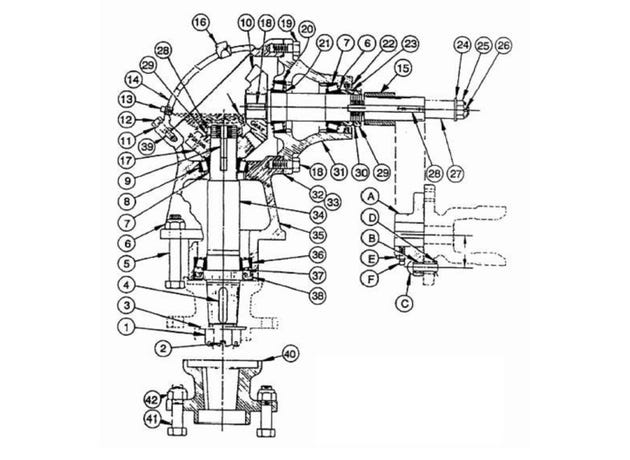

Servis Rhino CY60 Rotary Mower Rev 08-12 GEARBOX ASSEMBLY SN CY60-13700 TO CY60-20181 PARTS

#
Part #
Item
Price
Qty
Add
1
5D20120
NUT,HEX SLOTTED 1-1/4-12NF PL
$19.45
2
00606000
PIN,COTTER 3/16X2
$2.92
3
15C2000
WASHER, HARDENED 1-1/4
$3.91
4
581037
KEY,ROUND END
$15.07
7
W83
BEARING CONE
$103.10
8
W84
BEARING CUP
$46.88
9
571036
KEY 3/8 X 1-1/4 HEAT TREATED
$28.27
10
00757026
GEAR,BEVEL - 22 TOOTH
$495.89
11
00012101
LOCKWASHER, 3/8, HVY, PL
$2.92
12
00753642
HEXB 3/8 NC X 1-1/4 PL5
$2.92
13
3711350
PLASTIC PLUG

product not available CALL FOR AVAILABILITY

$0.00
14
0581000004
G/B COVER
$434.86
15
641041
SLEEVE,DRIVE SHAFT
$65.16
16
301021
BREATHER PLUG

product not available CALL FOR AVAILABILITY

$0.00
17
00757027
GEAR,BEVEL - 16 TOOTH
$334.98
18
PT209
KEY, WOODRUFF
$8.33
19
7A181310
BOLT, PLACE 1/2NC 1-1/4 PLAIN
$5.86
20
PT102
BEARING CUP 80MM OD
$100.76
21
PT101
BEARING CONE 1.6880" ID
$169.86
22
PT103
SEAL,OIL,3.066 OD X 2.125 ID
$48.04
23
271096
COLLAR,BEARING,DRIVESHAFT
$125.97
24
5312316
WASHER, HARDENED 3/4"
$2.92
25
5312315
NUT,YOKE 3/4-16 THIN CASTLE
$6.24
26
1621/2012
COTTER PIN
$4.17
27
0581000003
SHAFT
$881.26
28
271099
KEY SQ 0.375 X 1.50" LG
$32.09
29
PT104
LOCKNUT,BEARING - 18 TRD/INCH
$22.57
30
PT105
LOCKWASHER,BEARING
$11.38
31
571032
HOUSING, BEARING
$632.39
32
571037
SHIM SET
$44.31
33
571038
GASKET
$9.66
34
651045
SHAFT,OUTPUT BLADE
$326.21
35
0581000002
HOUSING, MACHINED
$498.33
36
00748537
BEARING CUP 3.500 ODX0.6501 W
$45.65
37
581038
BEARING CONE 2.0000" ID
$163.91
38
5810310
SEAL, OIL
$12.82
39
561055
GASKET
$5.11
40
581036
HUB,BLADE
$280.82
41
00749127
HHCS 5/8-18UNF 2-1/2 PL5
$5.41
42
00749136
LOCKNUT TLM 5/8 NF PLB
$2.92
?15A
0621000101
SLEEVE, 25/32 LG.

product not available CALL FOR AVAILABILITY

$0.00
A
BC3A
FLANGE, SHEARPIN
$457.62
B
371033
BUSHING
$76.36
C
371034
PIN,7/16 SHEAR X 1-5/8 LG
$5.21
D
4001000
COTTER PIN

product not available CALL FOR AVAILABILITY

$0.00
E
5C5180
NUT JAM 5/16 NC PL
$2.92
F
9A15186
SQ HD CP PT STSCRW 5/16-18X3/4
$2.92

0580540000
GEARBOX, CY60/72 540 RPM
$5,997.16

0581000000
GEARBOX ASSEMBLY

product not available CALL FOR AVAILABILITY

$3,041.09

00756958
GEAR SET 00757026 & 00757027
$933.98

581066
KEY, STRAIGHT 3/8 X 3-7/8

product not available CALL FOR AVAILABILITY

$0.00

PT12B
PIN SHEAR
$217.26

482051
BUSHING
$22.47
