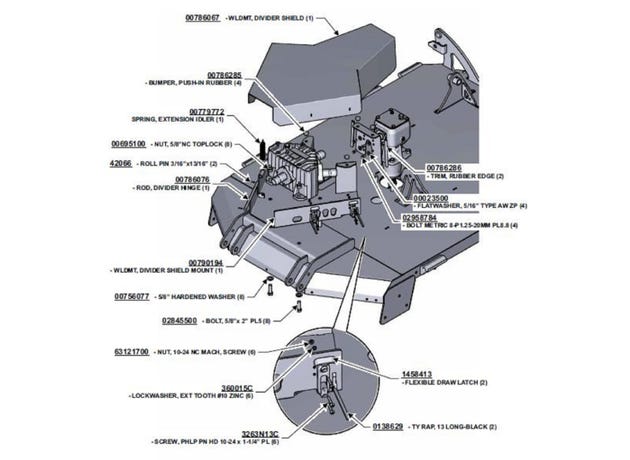

Servis Rhino TS12 Flex-Wing Mechanical Level Lift Rotary Mower DIVIDER & CENTER SHIELD ASSEMBLY PARTS

#
Part #
Item
Price
Qty
Add

00786067
WDMT,DIVIDER SHIELD
$283.50

00786285
BUMPER,PUSH-IN RUBBER
$2.78

0138629
TY-RAP, .301 WIDE X 13 LONG-
$2.78

1458413
LATCH,FLEXIBLE DRAW
$36.66

02958784
BOLT METRIC 8XP1.25X20MM PL8.8
$2.92

00023500
FLATWASHER 5/16 PL
$2.92

00786286
TRIM,RUBBER EDGE X BULK-BLACK
$6.74

3263N13C
PHLP SCRW PN HD 10-24 X 1 1/4
$2.78

360015C
LOCKWASHER,EXT TOOTH #10 ZINC
$2.78

63121700
NUT, 10-24 NC MACH. SCREW
$2.78

02845500
HEXB 5/8 NC X 2 PL5
$4.46

00756077
WASHER, 5/8 HARDENED - PLATED
$2.92

00790194
WDMT,DIVIDER MOUNT SHIELD
$231.21

00786076
ROD,DIVIDER HINGE
$30.02

42066
ROLL PIN 3/16 X 13/16
$2.78

00695100
NUT,TOPLOCK 5/8 NC PLC
$3.32

00779772
SPRING,EXT. IDLER-1 OD X 5.0 L
$19.21
