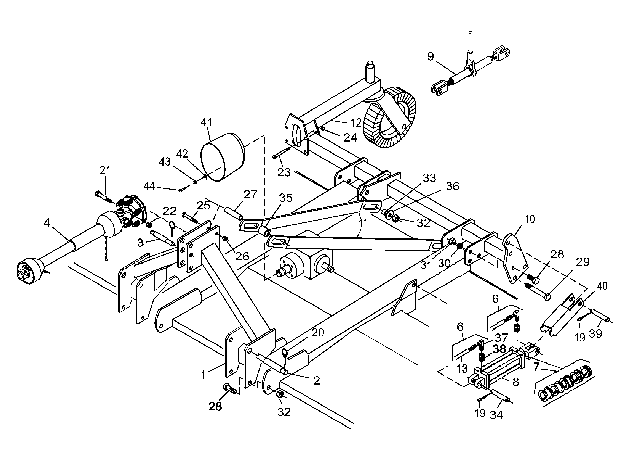

Woods Woods 1260 Rotary Cutter Multi-Spindle Cutter Mounted Assembly

#
Part #
Item
Price
Qty
Add
1
39050
Mast assembly

product not available CALL FOR AVAILABILITY

$0.00
2
39064
LOWER, HITCH PIN
$49.50
3
39065
TOP LINK PIN
$71.24
4
57425
DRV ASY CMPL 2500 41.7 X 58.5
$1,624.88
4
57419
DRV ASY CMPL 2500 35.8 X 49.8
$1,662.54
6
9382
1/4 x 156 inch Hydraulic hose kit, (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
7
24098
1-1/4CYL STRK CN
$40.68
8
597273
CYLINDER, 3.5 X 1.25 X 8.0 NPT
$150.86
9
S010541OE
OEM, BLACK POWDER ACME JACK
$99.11
10
1006325
CYL LUG MOUNTED RC10.5

product not available CALL FOR AVAILABILITY

$182.97
11
39059RP
LNKOFS .5 X 3 X 72 X 14
$208.89
13
8669
HOSE, 1/4 X 1/4 X 156
$104.20
19
1285
PIN, COTTER 1/4 X 1-1/2
$1.44
20
35124
7/16 x 2 Klik pin

product not available CALL FOR AVAILABILITY

$0.01
21
3489
BOLT, HEX 1/2 NC X 3 GR5 ZP
$2.74
22
765
NUT, LOCK, 1/2 NC ZP
$3.40
23
378
5/8 NC x 5 Hex head cap screw (See note 25)

product not available CALL FOR AVAILABILITY

$0.00
24
6239
NUT, LOCK, 5/8 NC
$2.31
25
12558
HHCS 3/4 NC X 4-1/2
$6.42
26
2371
NUT, LOCK, 3/4 NC ZP
$3.23
27
39071
SLV .781 X 1.38 X 2.40
$28.82
28
3678
1 NC x 2-3/4 HHCS

product not available CALL FOR AVAILABILITY

$0.00
29
39141
HHCS, 1 NC X 12.0 GR5
$75.74
30
3689
WASHER, LOCK, 1 STD D
$1.15
31
3132
NUT, HEX, 1 NC ZP
$7.38
32
34279
NUT, LOCK 1 NC
$8.52
33
39070
SLV 1.02 X 1.38 X .62

product not available CALL FOR AVAILABILITY

$8.97
34
1631
PIN, HDLS 1.00 X 2.72
$16.31
35
7176
SLV 1-3/8 X 1-3/4 X 1-1/4
$25.50
36
11876
WSHR 1ID 2-5/8OD 1/4THICK

product not available CALL FOR AVAILABILITY

$6.02
37
10290
FITTING, ELBOW 1/4 X X1/4 W/1/
$6.75
38
W11893
ADAPTER, 1/4 NPTF 1/2 NPTM
$2.52
39
26148
PIN CLV 1 X 4-29/32 HT
$39.22
40
1004814RP
TRANSPORT LOCK-UP
$156.43
41
1002048
SHIELD, CLUTCH 100, 143 MM BC
$68.56
42
35155
WASHER, FLAT 5/16
$2.13
43
2472
WASHER, LOCK 5/16
$1.19
44
24801
BOLT, HEX M8-1.25P X 20MM
$1.72
