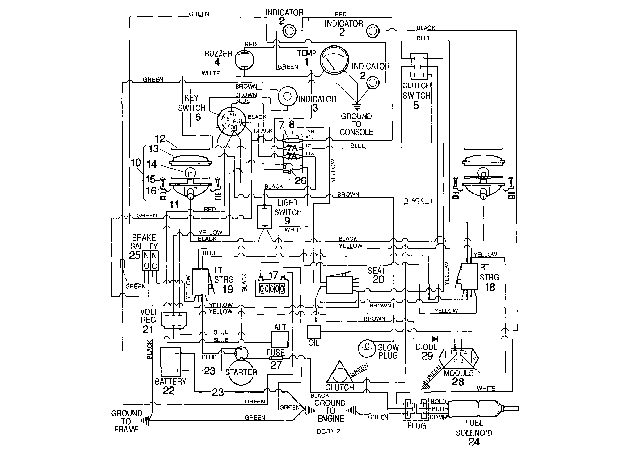

Wiring Diagram (SN 305286 & Above) Assembly

#
Part #
Item
Price
Qty
Add
1
W71129
COOLANT TEMP GAUGE /MR

product not available CALL FOR AVAILABILITY

$183.70
2
10550RP
SHEAVE, 4 TB 17
$410.17
3
70553
Glow light indicator

product not available CALL FOR AVAILABILITY

$0.00
4
71147
Buzzer 8 mount assembly (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
5
W72372
PTO SWITCH - COVER ASY /MR
$43.32
6
W70557
IGNITION SWITCH
$160.07
7
72061
Fuse - 8 amp (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
7A
70276
Fuse - 6 Amp (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
7B
71318
Fuse - 10 Amp (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
8
72079
Fuse block

product not available CALL FOR AVAILABILITY

$0.00
9
70401
LIGHT SWITCH /MR
$54.91
10
70404
Light assembly (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
11
70405
Lamp housing

product not available CALL FOR AVAILABILITY

$0.00
12
70406
Lens gasket

product not available CALL FOR AVAILABILITY

$0.00
13
70407
Lens

product not available CALL FOR AVAILABILITY

$0.00
14
70408
Light bulb

product not available CALL FOR AVAILABILITY

$0.00
15
70402
#10-24 x 3/4 Machine bolt

product not available CALL FOR AVAILABILITY

$0.00
16
70403
CHARGE RELIEF VALVE KIT

product not available CALL FOR AVAILABILITY

$0.00
17
W73902
HOUR, METER
$100.69
20
W70278
SAFETY SWITCH /MR
$106.38
21
W70111
VOLTAGE REGULATOR /MR
$369.13
22
70506
Bag rod

product not available CALL FOR AVAILABILITY

$0.00
23
W70735
BATTERY CABLE-10 /MR

product not available CALL FOR AVAILABILITY

$20.00
24
72063
SOLENOID-FUEL
$527.67
25
71148
BRAKE SFTY SWITCH
$25.03
26
72001
72001

product not available CALL FOR AVAILABILITY

$0.01
27
72062
Fuse - 25 amp, AGC25

product not available CALL FOR AVAILABILITY

$0.00
28
W72064
SWITCH INTERLOCK MOD /MR
$244.23
29
72065
Wire assembly with diode

product not available CALL FOR AVAILABILITY

$0.00

70020
SPR/CMP0.770 .09 3.2 29 /MR
$49.56

70283
Clevis pin - .312 x 3

product not available CALL FOR AVAILABILITY

$0.00

70284
Bolt - 6-32 x 1 Round

product not available CALL FOR AVAILABILITY

$0.00

70282
Seat switch mount

product not available CALL FOR AVAILABILITY

$0.00

70279
Seat switch & mount assembly

product not available CALL FOR AVAILABILITY

$0.00

W71314RP
MOUNT-STRG SW LT /MR

product not available CALL FOR AVAILABILITY

$47.47

W71313RP
MOUNT-STRG SW RT /MR

product not available CALL FOR AVAILABILITY

$47.53

70400
Hour meter mount bracket (See note 8)

product not available CALL FOR AVAILABILITY

$10.44

W70729
BATTERY BOX /MR

product not available CALL FOR AVAILABILITY

$89.54

W70731
BATTERY BOX COVER /MR

product not available CALL FOR AVAILABILITY

$156.62

W70733RP
BATTERY CLAMP /MR

product not available CALL FOR AVAILABILITY

$34.76

70274
BATTERY TERMINAL BOOT

product not available CALL FOR AVAILABILITY

$3.71

71122
Engine ground cable - 16 inch

product not available CALL FOR AVAILABILITY

$0.00

W70968
2 KEY SET IGNITION
$21.63

71335
Wiring harness (3-wire solenoid)

product not available CALL FOR AVAILABILITY

$0.00
