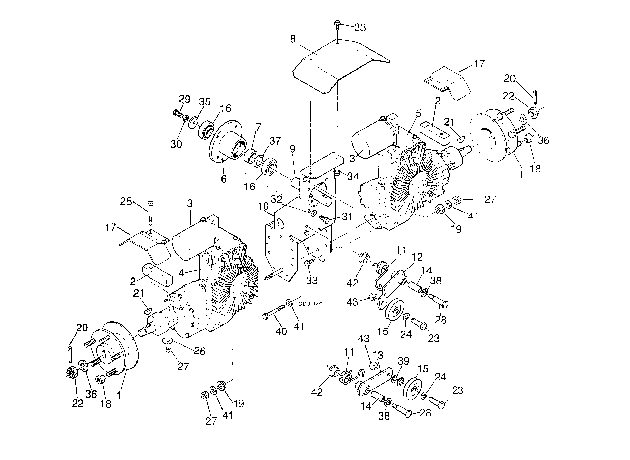

Tractor Drive Assembly

#
Part #
Item
Price
Qty
Add
1
W71303
DRIVE HUB W/ROTOR /MR
$497.15
2
71068
Transaxle mount spacer

product not available CALL FOR AVAILABILITY

$0.00
3
W71066
OIL FILTER /MR
$36.89
4
71482
Transaxle - Right (See note 4)

product not available CALL FOR AVAILABILITY

$0.00
4
71483
Transaxle - Left (See note 2)

product not available CALL FOR AVAILABILITY

$0.00
4
71302
Transaxle - Left (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
5
71301
Transaxle - Right (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
6
70608RP
SPINDLE HSG-VAC FAN
$154.25
7
33647
PIPE 1 SCH 40 X 0.75
$3.13
8
W71069
SHIELD /MR
$30.54
9
W71070
TRANSAXLE DRIVE SHAFT

product not available CALL FOR AVAILABILITY

$370.66
10
71071
TRANSAXLE CTR MT
$153.10
11
W71074
TORSION SPRING
$9.74
12
71322
IDLER ARM W/SPG-UPPER/MR

product not available CALL FOR AVAILABILITY

$139.19
13
71321
IDLER ARM W/SPG-LOWER/MR

product not available CALL FOR AVAILABILITY

$223.38
14
W71323
BEARING NYLON .5 /MR
$7.54
15
W71176
IDLER PULLEY .375 ID
$23.12
16
W70589
BRG-BALL 1 CYL W/LC
$36.62
17
71304
Shield - Disk brake

product not available CALL FOR AVAILABILITY

$0.00
18
35317
NUT, LUG 1/2 NF
$2.74
19
71305
WSHR .406X 1
$30.67
20
3597
PIN, COTTER 1/8 X 1
$1.72
21
63014
.25 X 1.0 WOODRUFF KEY
$2.52
22
W71152
NUT NYLOCK .75-20
$22.34
23
976
HHCS 3/8 NC X 1-1/2 GR5 ZP
$1.72
25
31138
3/8 NC x 3-1/2 HHCS GR5 (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
26
565
WASHER, FLAT 3/8
$1.72
27
835
NUT, HEX 3/8 NC ZP
$1.72
28
65949
3/8NCX2X1/2 SHLDR SCREW
$8.52
29
64518
HHCS 3/8 NF X 1 GR5
$1.72
30
838
WASHER, LOCK, 3/8 ZP
$1.44
31
6250
HHCS, 5/16 NC X 1-1/4 GR5 ZP
$1.44
32
2472
WASHER, LOCK 5/16
$1.19
33
70046
BOLT WHIZ .25-20 X.75 HEX/MR
$1.65
34
W70065
NUT WHIZ 1/4 NC
$1.19
35
70355
WSHR RETAINING/MR
$12.12
36
70417
WSHR .75ID 14GATHICK BSHG
$3.63
37
W70601
SHIM 1.00ID 1.50OD 18GATHICK
$4.49
38
W71076
SHIM .520 ID .010THICK /MR

product not available CALL FOR AVAILABILITY

$2.33
39
4378
WASHER, FLAT SAE 5/16
$0.78
40
7747
3/8 NC x 3 HHCS GR5 (Standard hardware, obtain locally)

product not available CALL FOR AVAILABILITY

$0.00
41
W70265
WSHR EXT TOOTH L /MR

product not available CALL FOR AVAILABILITY

$1.64
42
71324
BEARING DOUBLE /MR
$27.67
43
6698
NUT LOCK 3/8 NC ZP
$1.19

71359
BOLT 1/4 NC X 3/4 /MR

product not available CALL FOR AVAILABILITY

$1.52
