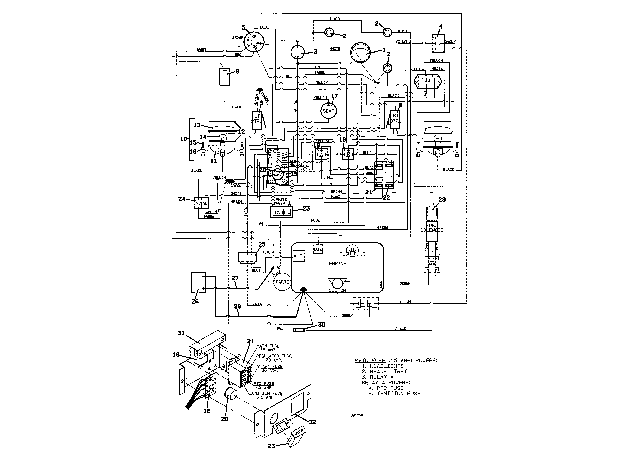

Wiring Diagram - Diesel SN 325649 & Below Assembly

#
Part #
Item
Price
Qty
Add
1
W71129
COOLANT TEMP GAUGE /MR

product not available CALL FOR AVAILABILITY

$183.70
2
70550
SIGNAL LIGHT /MR
$23.33
3
71147
Buzzer 8 mount assembly (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
4
W72372
PTO SWITCH - COVER ASY /MR
$43.32
5
W70557
IGNITION SWITCH
$160.07
6
70401
LIGHT SWITCH /MR
$54.91
7
W72064
SWITCH INTERLOCK MOD /MR
$244.23
9
75105
SAFETY SWITCH STRNG
$32.89
10
70404
Light assembly (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
11
70405
Lamp housing

product not available CALL FOR AVAILABILITY

$0.00
12
70406
Lens gasket

product not available CALL FOR AVAILABILITY

$0.00
13
70407
Lens

product not available CALL FOR AVAILABILITY

$0.00
14
70408
Light bulb

product not available CALL FOR AVAILABILITY

$0.00
15
70402
#10-24 x 3/4 Machine bolt

product not available CALL FOR AVAILABILITY

$0.00
16
70403
CHARGE RELIEF VALVE KIT

product not available CALL FOR AVAILABILITY

$0.00
17
71389
Seat safety switch

product not available CALL FOR AVAILABILITY

$0.00
18
W71475
RELAY,
$62.91
19
71409
Wiring assembly 5215

product not available CALL FOR AVAILABILITY

$0.00
20
72001
72001

product not available CALL FOR AVAILABILITY

$0.01
21
W71410
FUSE BLOCK /MR
$32.41
22
W71385
FUSE-30 AMP AUTO /MR
$6.13
23
W73902
HOUR, METER
$100.69
24
71148
BRAKE SFTY SWITCH
$25.03
25
W70111
VOLTAGE REGULATOR /MR
$369.13
26
70586
Battery

product not available CALL FOR AVAILABILITY

$0.00
27
W70735
BATTERY CABLE-10 /MR

product not available CALL FOR AVAILABILITY

$20.00
28
W70444
BATTERY CABLE /MR

product not available CALL FOR AVAILABILITY

$45.98
29
72063
SOLENOID-FUEL
$527.67
30
72062
Fuse - 25 amp, AGC25

product not available CALL FOR AVAILABILITY

$0.00
31
71392
Fuse block mount

product not available CALL FOR AVAILABILITY

$0.00
32
71393
Fuse block cover

product not available CALL FOR AVAILABILITY

$0.00

W71314RP
MOUNT-STRG SW LT /MR

product not available CALL FOR AVAILABILITY

$47.47

W71313RP
MOUNT-STRG SW RT /MR

product not available CALL FOR AVAILABILITY

$47.53

W70968
2 KEY SET IGNITION
$21.63

W70729
BATTERY BOX /MR

product not available CALL FOR AVAILABILITY

$89.54

W70731
BATTERY BOX COVER /MR

product not available CALL FOR AVAILABILITY

$156.62

71386
Auto fuse 15 AMP

product not available CALL FOR AVAILABILITY

$19.08

W71387
FUSE-7.5 AMP AUTO /MR
$6.65

W70733RP
BATTERY CLAMP /MR

product not available CALL FOR AVAILABILITY

$34.76

70274
BATTERY TERMINAL BOOT

product not available CALL FOR AVAILABILITY

$3.71
