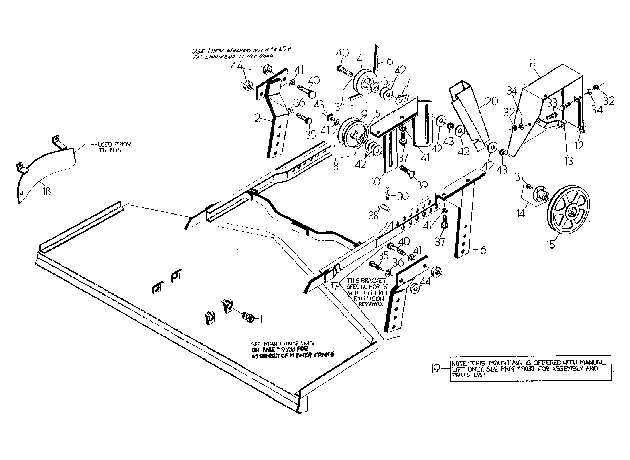

Woods Woods 59HB-1 IH B With Belt Pulley Undermount/Mid-mount Rotary Cutter Mounting Frame Assembly

#
Part #
Item
Price
Qty
Add
1
18336
K PLUG 1-1/16-121DSAETHD
$3.04
2
10654
Right mounting bracket assembly

product not available CALL FOR AVAILABILITY

$478.70
4
4336
V GROOVE IDLR W BRG
$81.23
5
6095
BRG-BALL .626 ID X 1.85 OD
$33.79
6
3652
W189 V-BELT
$136.04
7
10648
WSHR 5/8 59HC ETC SPEC
$127.26
9
7452
6-1/4 OD FLAT IDLR - BRG
$108.97
10
10655
Idler bracket

product not available CALL FOR AVAILABILITY

$236.40
11
25550
L59AETC UPPER BELT SHLDW
$55.92
12
1635
L59A ETC REAR SHLD BRKTW
$42.82
13
25562
BRKT, SHLD 7GAX1.00X6.00

product not available CALL FOR AVAILABILITY

$51.54
14
3651
BSHG P1 1-1/8 6 SPLND
$58.57
15
1481RP
SHV 9.40 IB PI
$251.52
16
10650
59HB ETC LT MTG BRKT ASY

product not available CALL FOR AVAILABILITY

$439.25
17
12216
Special left mounting brkts With hdwr (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
18
10670
Discontinued. (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
20
25558
L59AC B ETC RR BLT SHLDW
$345.52
30
2688
5/32 HAIR PIN COTTER
$2.52
31
2978
SHCS 1/4 NC X 3/4
$1.44
32
835
NUT, HEX 3/8 NC ZP
$1.72
33
1263
3/8 NC x 1 Hex head cap screw

product not available CALL FOR AVAILABILITY

$0.00
34
838
WASHER, LOCK, 3/8 ZP
$1.44
35
948
1/2 NC x 2 inch Hex head cap screw (See note 3)

product not available CALL FOR AVAILABILITY

$0.00
36
855
WASHER, LOCK, 1/2 ZP
$1.44
37
738
5/8 NC x 1-1/2 Hex head cap screw

product not available CALL FOR AVAILABILITY

$0.00
38
410
PIN CLV 5/8 X 1-3/4
$3.83
39
5836
BOLT, CRG 5/8NC X 2-1/2 GR5 Z
$2.74
40
23141
BOLT, HEX 5/8 NC X 3-1/2 HT
$3.23
41
1286
WASHER, LOCK, HEAVY ZP
$1.72
42
692
WASHER, FLAT, 5/8 STD ZP
$1.72
43
230
NUT, HEX, 5/8 NC PLATD
$1.72
44
7453
WSHR 5/8ID 1-3/8OD 7/16THICK
$5.54
