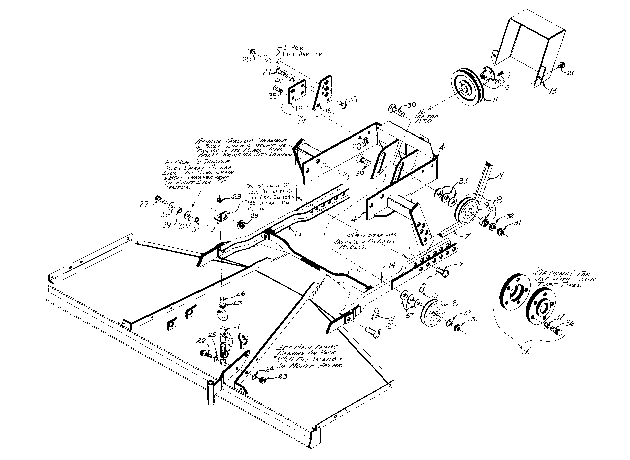

Woods Woods 59LB-1 IH 154, 184, 185 Cub Lo-Boy Undermount/Mid-mount Rotary Cutter Mounting Assembly

#
Part #
Item
Price
Qty
Add
1
6911
2/0STR LNK COIL CHN 7LNK
$12.88
2
10772
Rear lift lug

product not available CALL FOR AVAILABILITY

$109.56
3
18314
SLV 1/2 X 5/8 X 5/16

product not available CALL FOR AVAILABILITY

$22.71
4
9814
IH LB IDLER& MTG FRM ASY (See note 1)

product not available CALL FOR AVAILABILITY

$0.00
5
2688
5/32 HAIR PIN COTTER
$2.52
7
18440
W182 V-BELT 59LB ETC
$145.28
9
4336
V GROOVE IDLR W BRG
$81.23
10
6095
BRG-BALL .626 ID X 1.85 OD
$33.79
11
3493RP
1BK 6.1H SHEAVE
$59.54
12
1506
BSHG 978 10 SPLND
$41.87
13
18310
59LB ETC PTO BELT SHLD
$86.66
14
18241
59LBPUSH CHNL W/CLVSBARW
$137.34
15
18245
59LB CROSSWISE RR SUPORT
$205.70
16
18240
LB TURF TIRE WH SPCR KIT (See note 8)

product not available CALL FOR AVAILABILITY

$0.00
17
27207
3-pt hitch bracket kit (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
18
18371
59LB 3 PT HTCH LIFT LUG
$19.56
19
27208RP
59LB 3 PT HITCH MT BRKT
$23.18
20
2457
BOLT, HEX, 1/4NC X 3/4, GR5
$1.19
21
71851
HHCS 5/16 NC X 3/4 FLANGE
$1.72
22
976
HHCS 3/8 NC X 1-1/2 GR5 ZP
$1.72
23
835
NUT, HEX 3/8 NC ZP
$1.72
24
838
WASHER, LOCK, 3/8 ZP
$1.44
25
565
WASHER, FLAT 3/8
$1.72
26
5762
BOLT EYE 3/8 NC X 3-1/4 OPEN
$31.06
27
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
28
11900
NUT, LOCK FLANGE 1/2 NC
$1.90
29
4097
PIN, CLV 5/8 X 1-1/2
$3.74
30
5836
BOLT, CRG 5/8NC X 2-1/2 GR5 Z
$2.74
31
230
NUT, HEX, 5/8 NC PLATD
$1.72
32
1286
WASHER, LOCK, HEAVY ZP
$1.72
33
692
WASHER, FLAT, 5/8 STD ZP
$1.72
34
410
PIN CLV 5/8 X 1-3/4
$3.83
35
2615
BOLT, CARRIAGE 1/2 NC X 1-1/4
$4.56
36
W18250
HHCS 1/2 NF X 1-1/2 GR5

product not available CALL FOR AVAILABILITY

$1.95
37
23389
59LB WH SPCR BOLT SLV

product not available CALL FOR AVAILABILITY

$49.49
38
854
WASHER, FLAT, 1/2 STD ZP
$1.44
39
24667
BSHG 1/2 X 5/8 X 7/16

product not available CALL FOR AVAILABILITY

$21.25
40
855
WASHER, LOCK, 1/2 ZP
$1.44

3485
CROSSWISE REAR SUPPORT W
$110.03

13314
Chnl arms (See note 2)

product not available CALL FOR AVAILABILITY

$85.47
