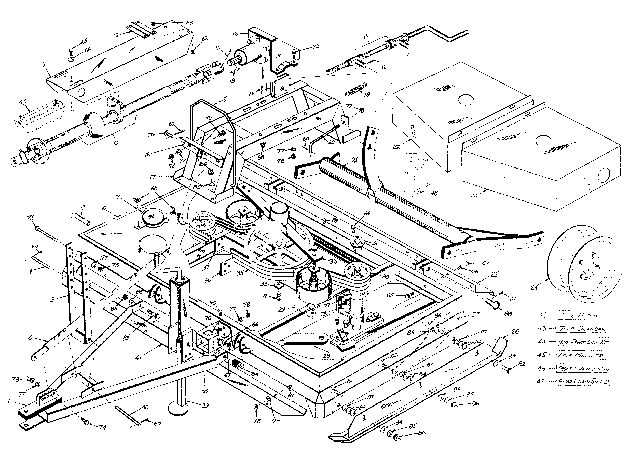

Woods Woods 61-5 (1959-63) Multi-Spindle Cutter Main Assembly

#
Part #
Item
Price
Qty
Add
1
7023
Tongue

product not available CALL FOR AVAILABILITY

$0.00
2
406RP
D80 ETC COMPRSN MBR

product not available CALL FOR AVAILABILITY

$96.94
3
7030
H FRM
$115.09
4
W404
PIN, CLV 1/2 X 5-3/4 HT
$18.64
5
7035
PIPE, 1/2 SCHEDULE 40 X 3.56
$17.39
6
7007
Frame only

product not available CALL FOR AVAILABILITY

$0.00
7
3444RP
ACCESS HOLE COVER
$22.22
9
7032
DR SHFT SHLD

product not available CALL FOR AVAILABILITY

$140.10
10
6747
SHLD STRAP

product not available CALL FOR AVAILABILITY

$24.26
11
609
Pin

product not available CALL FOR AVAILABILITY

$0.00
13
7309
Key

product not available CALL FOR AVAILABILITY

$0.00
14
607RP
3/8 X 3/8 X 2-3/8 KEY

product not available CALL FOR AVAILABILITY

$3.60
15
4575
Shield support (With straight legs) (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
16
7033RP
COMPRSN MBR BRKT

product not available CALL FOR AVAILABILITY

$139.21
17
7008
Gear stand

product not available CALL FOR AVAILABILITY

$0.00
18
419
SPR/EXT0.88 .15 4.1 107
$20.19
20
1351
Take-up rod

product not available CALL FOR AVAILABILITY

$0.00
21
7019
Wheel yoke

product not available CALL FOR AVAILABILITY

$0.00
22
W12162
C80ETC RIGHT V BELT SHLD
$157.57
23
W12163
C80 ETC LEFT V BELT SHLD
$157.57
25
2324
Rear shield

product not available CALL FOR AVAILABILITY

$193.30
26
1563
C80 C080 C114SKID W/HDWR
$226.35
27
2128
C80 ETC ANTIWNDRO BFL
$159.92
30
1976
Sheave

product not available CALL FOR AVAILABILITY

$0.00
31
1482
BSHG P1 1-1/4 STRT BORE
$56.59
32
606
LUG 1/4 X 1-1/2 X 2

product not available CALL FOR AVAILABILITY

$81.98
33
7017
Floating idler arm

product not available CALL FOR AVAILABILITY

$0.00
34
214
Sheave

product not available CALL FOR AVAILABILITY

$0.00
35
6230
Set of 3 matched V-belts

product not available CALL FOR AVAILABILITY

$0.00
37
29038RP
C80 ETC SPINDLE SUPP PLT
$90.98
38
7028
Jack box

product not available CALL FOR AVAILABILITY

$0.00
40
405
PIN CLV 5/8 X 6-3/4
$69.90
41
7036
Front reversible shld

product not available CALL FOR AVAILABILITY

$107.80
42
2209
Disc hitch (See note 34)

product not available CALL FOR AVAILABILITY

$0.00
43
2630
Jeep draw bar

product not available CALL FOR AVAILABILITY

$0.00
48
1872
Wheel yoke adjusment bracket

product not available CALL FOR AVAILABILITY

$0.00
49
411
Front drive shaft shield

product not available CALL FOR AVAILABILITY

$0.00
60
1256
3/16 X 1, COTTER PIN
$1.19
61
1285
PIN, COTTER 1/4 X 1-1/2
$1.44
62
1282
SCREW, ROUND HEAD SLOTTED 1/4N
$0.67
63
6128
1/4 NC Lock nut (See note 30)

product not available CALL FOR AVAILABILITY

$0.00
64
5295
5/16 NC x 1 inch Hex head cap screw (See note 9)

product not available CALL FOR AVAILABILITY

$0.00
65
839
BOLT, HEX 3/8 NC X 1 GR5 ZP
$1.54
66
838
WASHER, LOCK, 3/8 ZP
$1.44
67
835
NUT, HEX 3/8 NC ZP
$1.72
68
1287
NUT WING 3/8 NC
$1.72
69
25475
BOLT, HEX 1/2 NC X 1 GR5 ZP FU
$2.13
70
745
REPL BY 1 6100

product not available CALL FOR AVAILABILITY

$0.01
71
1262RP
HHCS 1/2 NC X 1-1/4 DRL HD

product not available CALL FOR AVAILABILITY

$22.89
72
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
73
3452
HHCS 1/2 NF X 1-1/2 HT
$12.05
74
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
75
1738
1/2 NC x 5-1/2 Hex head cap screw (See note 46)

product not available CALL FOR AVAILABILITY

$0.00
76
409
PIN, CLEVIS 1/2 X 2
$6.75
77
855
WASHER, LOCK, 1/2 ZP
$1.44
78
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
79
6241
NUT, LOCK NYLOC 1/2 NC
$1.67
80
614
5/8 NC x 1-3/4 Hex head cap screw (See note 35)

product not available CALL FOR AVAILABILITY

$0.00
81
2855
BOLT, CARRIAGE 5/8 NC X 2
$3.13
83
23141
BOLT, HEX 5/8 NC X 3-1/2 HT
$3.23
84
692
WASHER, FLAT, 5/8 STD ZP
$1.72
85
1286
WASHER, LOCK, HEAVY ZP
$1.72
86
230
NUT, HEX, 5/8 NC PLATD
$1.72
87
2864
WASHER, FLAT, 3/4, ZINC-PLT ST
$0.32
88
W8341
PIN CLV 1 X 2-1/2 HT
$41.46
89
6238
5/8 NC x 2-1/4 Hex head cap screw (See note 23)

product not available CALL FOR AVAILABILITY

$0.00
