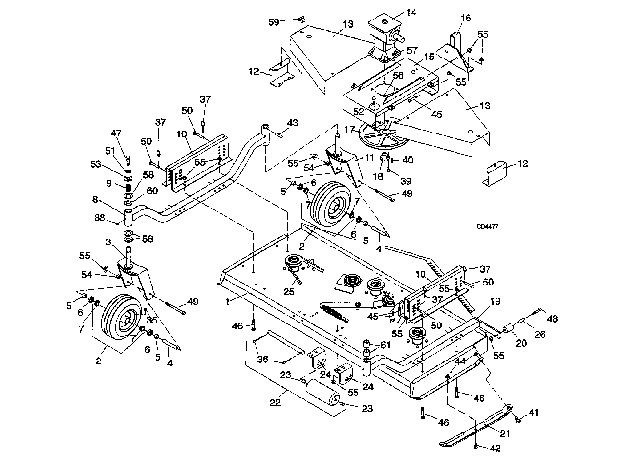

Woods Woods 9204-2 Turf Batwing Rotary Cutter Wing Deck Assembly

2

WP38267G

WHEEL 15.00 X 6.00 X 6 GRAY

$177.84

3

38246

Caster yoke

product not available CALL FOR AVAILABILITY

$0.00

4

38111

SLV .525 X .750 X 6.75 HT

$12.80

5

14318

SLV 3/4 X 1-1/8 X 1-1/4 HT

$20.66

6

5624

SEAL 1.125 X 1.78 X .47

$6.42

7

2304

BRG-CONE, LM11949

$18.74

8

38224

WA OUTSIDE CASTE

$313.50

9

67407RP

SPRING, CMP 1.40 .19 2.1 257

$6.48

10

38215

WA 72 CASTER MTG BRKT

product not available CALL FOR AVAILABILITY

$212.10

11

38030

Caster yoke

product not available CALL FOR AVAILABILITY

$208.90

12

38208

WA SHIELD SUPPORT

$56.40

13

38207

BLANK, 72 BELT SHIELD

$425.47

14

38124

GEARBOX 1.76:1 CCW

$1,523.39

15

57943RP

WA, 72 GEARBOX STAND

$379.20

16

38149

WA REAR TRUNNION MTG BRKT

product not available CALL FOR AVAILABILITY

$123.86

17

29224RP

1BK 13.4 H SHEAVE KEYED

$162.85

18

28943

BSHG RM500 KEYED

$47.29

19

38543

WA LT INSIDE CA

$267.00

19

38542

WA RT INSIDE CA

$267.00

20

38546

BAR, RD CHMFRD 1.75 X 2.00

$47.70

21

31665

RM306-2 SIDE SKID

$40.28

22

24583

RM90ETC FRT ROLR BRG-ROD

$123.37

23

29610

BEARING FLANGE 5/8 X 7/8 X 7/8

$2.93

24

38100

LNK BENT .38 X 4.50 X 4.22

$25.14

25

31748

W108 V-BELT RM48YM-2ETC

$125.42

26

38547

SLV .505 X .625 X 2.13

$37.55

35

195

STRT 1/8P THRD G FITTING

$1.90

36

1256

3/16 X 1, COTTER PIN

$1.19

37

22411

PIN, KLIK 3/16 X 1

$3.74

38

1972

FITTING, GREASE ZERK 1/4-28

$2.93

39

10378

BOLT, HEX 1/4NC X 1 GR5

$0.90

40

28713

3/8 X 3/8 X .90 KEY

$3.93

41

6697

BOLT, CARRIAGE 3/8 NC X 1 GR

$1.72

42

7701

3/8 NC x 1-1/4 Plow bolt (See note 21)

product not available CALL FOR AVAILABILITY

$0.00

43

4674

PIN, ROLL 3/8 X 2

$4.89

44

14350

NUT, LOCK FLANGE 3/8 NC

$1.72

45

25475

BOLT, HEX 1/2 NC X 1 GR5 ZP FU

$2.13

46

14406

BOLT, CARRIAGE 1/2 NC X 1

$1.54

47

6100

BOLT, HEX 1/2 NC X 1-1/4 GR5

$2.52

48

14069

HHCS 1/2 NC X 3-1/4

$5.06

49

38107

HHCS 1/2 NC X 9 GR5

$5.56

50

5561

PIN CLV 1/2 X 2-3/4

$30.39

51

855

WASHER, LOCK, 1/2 ZP

$1.44

52

2615

BOLT, CARRIAGE 1/2 NC X 1-1/4

$4.56

53

33677

WSHR 1/2 X 1-9/16 X 10GA

$2.13

54

1093

NUT, HEX HEAVY 1/2 NC ZP

$1.54

55

11900

NUT, LOCK FLANGE 1/2 NC

$1.90

56

19024

HFS 5/8 NC X 1-3/4 GR5

$5.40

57

19025

NUT, HFN 5/8 NC, LOCK

$3.31

58

23609

WSHR 1-1/4 X 2-3/8 X 3/16 FLAT

$14.45

59

66840

KNOB, 3 PRONG 3/8NC

$4.25

60

7129

SHIM 1-3/8ID 2-1/8OD 18GATHICK

$10.80

61

31780

BUSHING, 1-1/4 X 1-1/2 X1-1/2B

$14.13



WP38476G

WHEEL RIM 6.00X 6 W/CUPS GRAY

$129.80
