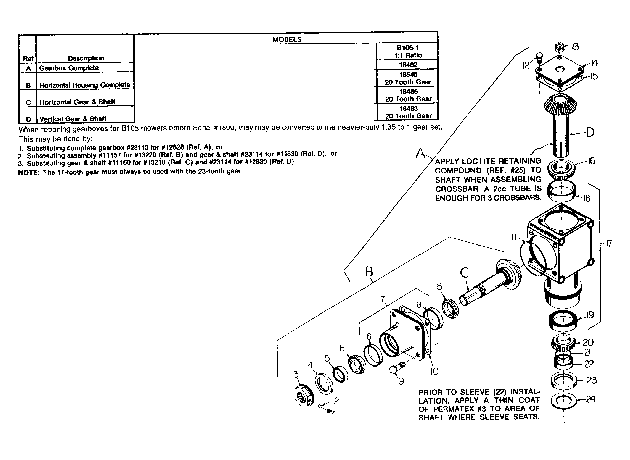

Woods Woods B106-1 Single Spindle Single Spindle Cutter Gearbox Assembly

1

7269

3/8NFX3/8 FLAT PT SKT SS

$1.72

2

7127

5/16 X 5/32 DOWEL PLUG

$8.55

3

W11007

NUT, 72-1ETC 1-5/8 FLANGD

$46.46

4

W11010

SEAL, 2.12 X 3.00 X .38

$10.67

5

11054

SLV 1-5/8 X 2-1/8 X 5/8

$14.92

6

11114

BRG-CONE LM501349

$30.76

7

11063

72-1 ETC H GR HSG W/CUPS

$157.98

8

11115

BRG-CUP LM501310

$15.70

10

11209

0210 ETC .010 GR BX GSKT

$6.26

11

10055

O-RING 5-1/4OD 1/8THK SQ

$4.64

13

23057RP

1/2 IN PIPE PLUG W VENT

$29.12

13

10362RP

1 IN SQ HD VNTD PIPE PLG

$20.04

14

W11005

72ETC GR BX COVR W PLUGS

$95.22

15

11442

114664-1/2 IDX5 GASKT

$6.73

16

4321

BRG-CONE 368A

$44.76

17

12898

R105ETC GR BX HSG W CUPS

$573.83

18

4320

BEARING CUP 362A

$26.56

19

7883

BEARING CUP, 3720 367OD

$28.36

20

7884

BRG-CONE 3780 2 ID

$56.16

21

10442

O-RING 2.0OD 1/16THK

$2.31

22

7779

SLV 1.99 X 2.50 X .781

$30.76

23

7989

SEAL 2.5 X 3.75 X .50

$12.43

24

7794

WSHR 2ID 3-3/4OD 10GATHICK

$15.55

25

10899

Loctite bottle, 10 cc

product not available CALL FOR AVAILABILITY

$0.00

25

13944

2 cc tube retaining compound

product not available CALL FOR AVAILABILITY

$0.00

A

18482

84-1 ETC GEAR BOX 1-1

$2,144.83

B

18545

84-1 ETC HORZ GR HSG ASY

$829.49

C

18486RP

84-1ETC HORZ GR-SHFT ASY

$610.55

D

18483RP

84-1ETC VERT GR-SHFT ASY

$954.22
