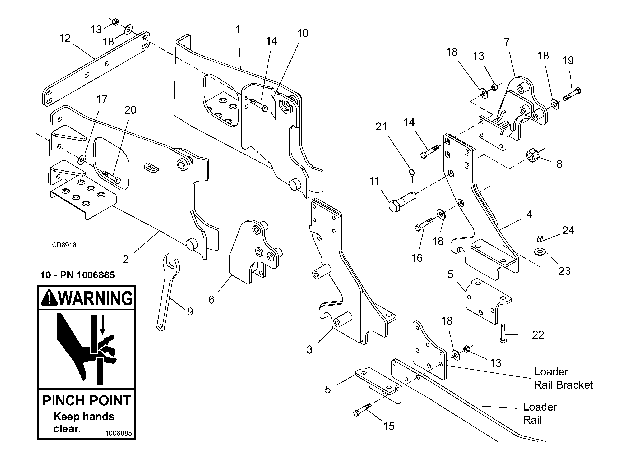

Woods Woods BH80-X Backhoe Attachment: 4-Point Sub-Frame Mounting Kit 1020616 (Mahindra) Assembly

#
Part #
Item
Price
Qty
Add
1
1011355
Left backhoe bracket

product not available CALL FOR AVAILABILITY

$144.32
2
1011356
Right backhoe bracket

product not available CALL FOR AVAILABILITY

$144.32
3
1020618
Right tractor bracket

product not available CALL FOR AVAILABILITY

$106.59
4
1020619
Left tractor bracket

product not available CALL FOR AVAILABILITY

$106.59
5
1020622
Support link

product not available CALL FOR AVAILABILITY

$6.94
6
1020626
Right ROPS attach bracket

product not available CALL FOR AVAILABILITY

$91.19
7
1020627
Left ROPS attach bracket

product not available CALL FOR AVAILABILITY

$91.19
8
1006861
NUT, HEX SLOTTED 1-8 UNC
$3.23
9
1006883RP
WRENCH 1-1/2 OPEN END

product not available CALL FOR AVAILABILITY

$53.63
10
1006885
DCL WRNG PINCH POINT
$0.02
11
1007320
HHCS 1 NC X 3-1/2 GR5 ZP DRL
$18.49
12
1009464
BH LINK 65/7500

product not available CALL FOR AVAILABILITY

$23.87
13
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
14
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
15
3699
BOLT, HEX 1/2 NC X 2 GR5
$2.31
16
52418
HHCS 12 MMX1.75X110 MM CL 8.8
$4.89
17
57798
WASHER, 3/4 SAE FLAT HRDN
$2.52
18
57816
WASHER, FLAT, 1/2 STD HRDN BL
$1.44
19
66354
M12 x 1.75P x 80 mm Hex Head Cap Screw 8.8 (See note 3)

product not available CALL FOR AVAILABILITY

$1.89
20
735
HHCS, 3/4 NC X 2 GR5
$2.05
21
62043
1/4 X 1-3/4 KLIK PIN
$2.52
22
7832
5/8 NC x 1-1/2 Hex head cap screw GR5 (See note 14)

product not available CALL FOR AVAILABILITY

$0.00
23
57817
WASHER, 5/8 SAE FLAT HRDN
$0.58
24
230
NUT, HEX, 5/8 NC PLATD
$1.72
25
5561
PIN CLV 1/2 X 2-3/4
$30.39
26
2688
5/32 HAIR PIN COTTER
$2.52

1020616
4-Point Sub-Frame Mounting Kit

product not available CALL FOR AVAILABILITY

$0.00
