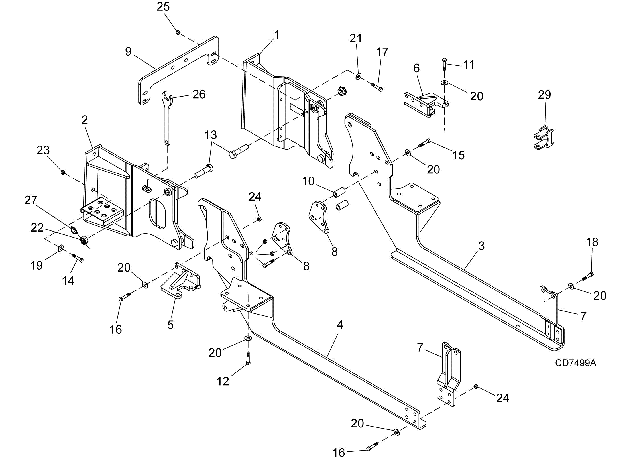

Woods Woods BH90-X Backhoe Attachment: 4-Point Sub-Frame Mounting Kit 1020970 (ROPS) Assembly

#
Part #
Item
Price
Qty
Add
1
1020971
Left backhoe bracket

product not available CALL FOR AVAILABILITY

$43.89
2
1020972
Right backhoe bracket

product not available CALL FOR AVAILABILITY

$43.89
3
1020973RP
WA, TRACTOR BRKT LH
$814.86
4
1020974RP
WA, TRACTOR BRKT RH
$814.86
5
1020984
Right top bracket

product not available CALL FOR AVAILABILITY

$22.92
6
1020985
Left top bracket

product not available CALL FOR AVAILABILITY

$22.92
7
1028330
Rail bracket

product not available CALL FOR AVAILABILITY

$19.92
8
1020990RP
CYLINDER BRKT

product not available CALL FOR AVAILABILITY

$43.16
9
1020959
CROSS BRACE
$87.02
10
1020991
SPACER
$10.96
11
W307435
HHCS M16-1.5P X 60MM ZP
$5.66
12
W307431
HHCS M16-1.5P X 45MM
$3.43
13
1006860
HHCS 1 UNC X 4 GR5 ZP DRL
$18.33
14
735
HHCS, 3/4 NC X 2 GR5
$2.05
15
1605
5/8 NC x 4 Hex head cap screw

product not available CALL FOR AVAILABILITY

$0.00
16
902
BOLT, HEX 5/8 NC X 2 GR5 ZP
$3.31
17
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
18
1022993
M20 x 1.5P x 60 mm HHCS CL8.8

product not available CALL FOR AVAILABILITY

$12.12
19
57798
WASHER, 3/4 SAE FLAT HRDN
$2.52
20
57817
WASHER, 5/8 SAE FLAT HRDN
$0.58
21
57816
WASHER, FLAT, 1/2 STD HRDN BL
$1.44
22
1006861
NUT, HEX SLOTTED 1-8 UNC
$3.23
23
1450
NUT, HEX 3/4 NC
$2.13
24
230
NUT, HEX, 5/8 NC PLATD
$1.72
25
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
26
1006883RP
WRENCH 1-1/2 OPEN END

product not available CALL FOR AVAILABILITY

$53.63
27
62043
1/4 X 1-3/4 KLIK PIN
$2.52
28
1006885
DCL WRNG PINCH POINT
$0.02
29
1036248RP
WA ANTISWAY BRACKET
$74.72
