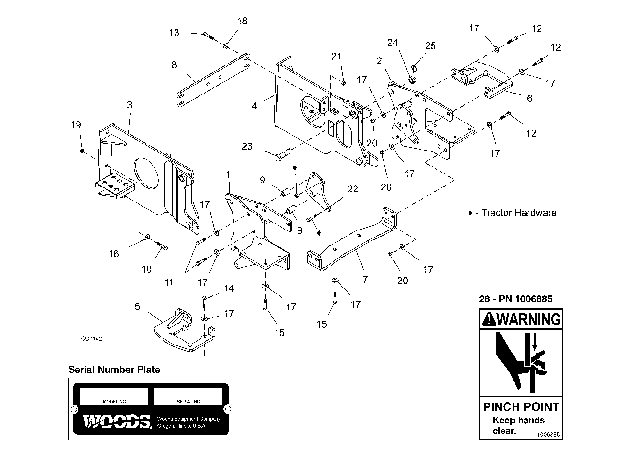

Woods Woods BH90-X Backhoe Attachment: 4-Point Sub-Frame Mounting Kit 1023000 For BH90-X Backhoe Assembly

#
Part #
Item
Price
Qty
Add
1
1023004
Right tractor bracket

product not available CALL FOR AVAILABILITY

$159.50
2
1023005
Left tractor bracket

product not available CALL FOR AVAILABILITY

$159.50
3
1023006
Right backhoe bracket

product not available CALL FOR AVAILABILITY

$178.10
4
1023007
Left backhoe bracket

product not available CALL FOR AVAILABILITY

$178.10
5
1024050
Right top bracket

product not available CALL FOR AVAILABILITY

$34.10
6
1024051
Left top bracket

product not available CALL FOR AVAILABILITY

$34.10
7
1024052
Crossmember

product not available CALL FOR AVAILABILITY

$36.96
8
1024322
Cross brace

product not available CALL FOR AVAILABILITY

$21.72
9
1024061
Spacer 2.1 inch

product not available CALL FOR AVAILABILITY

$8.13
10
735
HHCS, 3/4 NC X 2 GR5
$2.05
11
W300457
BOLT, HEX 5/8 NC X 3-3/4 GR5 Z
$4.73
12
902
BOLT, HEX 5/8 NC X 2 GR5 ZP
$3.31
13
3379
BOLT, HEX 1/2 NC X 1-1/2 GR5 Z
$2.93
14
59246
HHCS M16-1.50P X 60 GR10.9
$9.38
15
W307431
HHCS M16-1.5P X 45MM
$3.43
16
57798
WASHER, 3/4 SAE FLAT HRDN
$2.52
17
57817
WASHER, 5/8 SAE FLAT HRDN
$0.58
18
57816
WASHER, FLAT, 1/2 STD HRDN BL
$1.44
19
1450
NUT, HEX 3/4 NC
$2.13
20
230
NUT, HEX, 5/8 NC PLATD
$1.72
21
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
22
1023001
Cylinder bracket

product not available CALL FOR AVAILABILITY

$13.32
23
1006860
HHCS 1 UNC X 4 GR5 ZP DRL
$18.33
24
1006861
NUT, HEX SLOTTED 1-8 UNC
$9.10
25
62043
1/4 X 1-3/4 KLIK PIN
$2.52
26
62540
PIN, CLV .75 X 2.76
$10.73
27
1006883RP
WRENCH 1-1/2 OPEN END

product not available CALL FOR AVAILABILITY

$53.63
28
1006885
DCL WRNG PINCH POINT
$0.02

1023000
4-Point Sub-Frame Mounting Kit (See note 10)

product not available CALL FOR AVAILABILITY

$0.00
