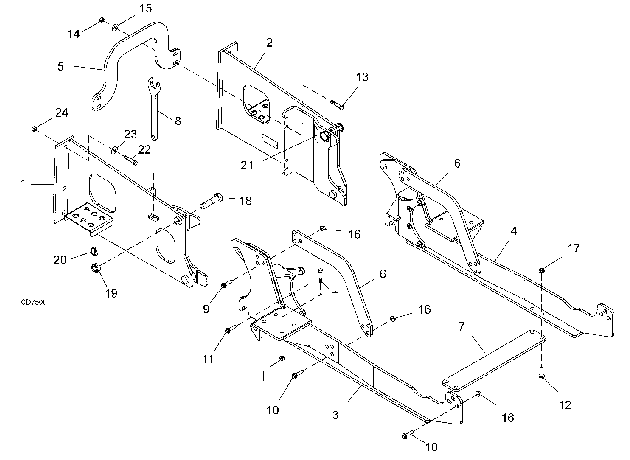

Woods Woods BH90-X Backhoe Attachment: 4-Point Sub-Frame Mounting Kit 1028300 Assembly

#
Part #
Item
Price
Qty
Add
1
1012244
Right backhoe bracket

product not available CALL FOR AVAILABILITY

$43.89
2
1012245
Left backhoe bracket

product not available CALL FOR AVAILABILITY

$43.89
3
1028294
Right tractor bracket

product not available CALL FOR AVAILABILITY

$725.90
4
1028295
Left tractor bracke

product not available CALL FOR AVAILABILITY

$725.90
5
1012246
Crossbar, (See note 1)

product not available CALL FOR AVAILABILITY

$28.82
6
1028700
Angle brace

product not available CALL FOR AVAILABILITY

$85.14
7
1028701
Cross brace

product not available CALL FOR AVAILABILITY

$94.93
8
1006883RP
WRENCH 1-1/2 OPEN END

product not available CALL FOR AVAILABILITY

$53.63
9
1027920
M16 x 2.0P x 70 mm FHCS CL10.9

product not available CALL FOR AVAILABILITY

$16.80
10
1022122
FHCS M16-2.0X45 CL10.9
$11.35
11
1028337
HFS M12-1.75 X 50MM CL 10.9
$11.29
12
19024
HFS 5/8 NC X 1-3/4 GR5
$5.40
13
24576
HHCS 1/2 NC X 1-3/4 GR5 ZP
$2.52
14
1093
NUT, HEX HEAVY 1/2 NC ZP
$1.54
15
57816
WASHER, FLAT, 1/2 STD HRDN BL
$1.44
16
1027921
M16X2.0 FLNG NUT CLS10
$6.65
17
1028718
HFN 5/8NC GR5
$3.63
18
1006860
HHCS 1 UNC X 4 GR5 ZP DRL
$18.33
19
1006861
NUT, HEX SLOTTED 1-8 UNC
$3.23
20
62043
1/4 X 1-3/4 KLIK PIN
$2.52
21
1006885
DCL WRNG PINCH POINT
$0.02
22
735
HHCS, 3/4 NC X 2 GR5
$2.05
23
57798
WASHER, 3/4 SAE FLAT HRDN
$2.52
24
1450
NUT, HEX 3/4 NC
$2.13
